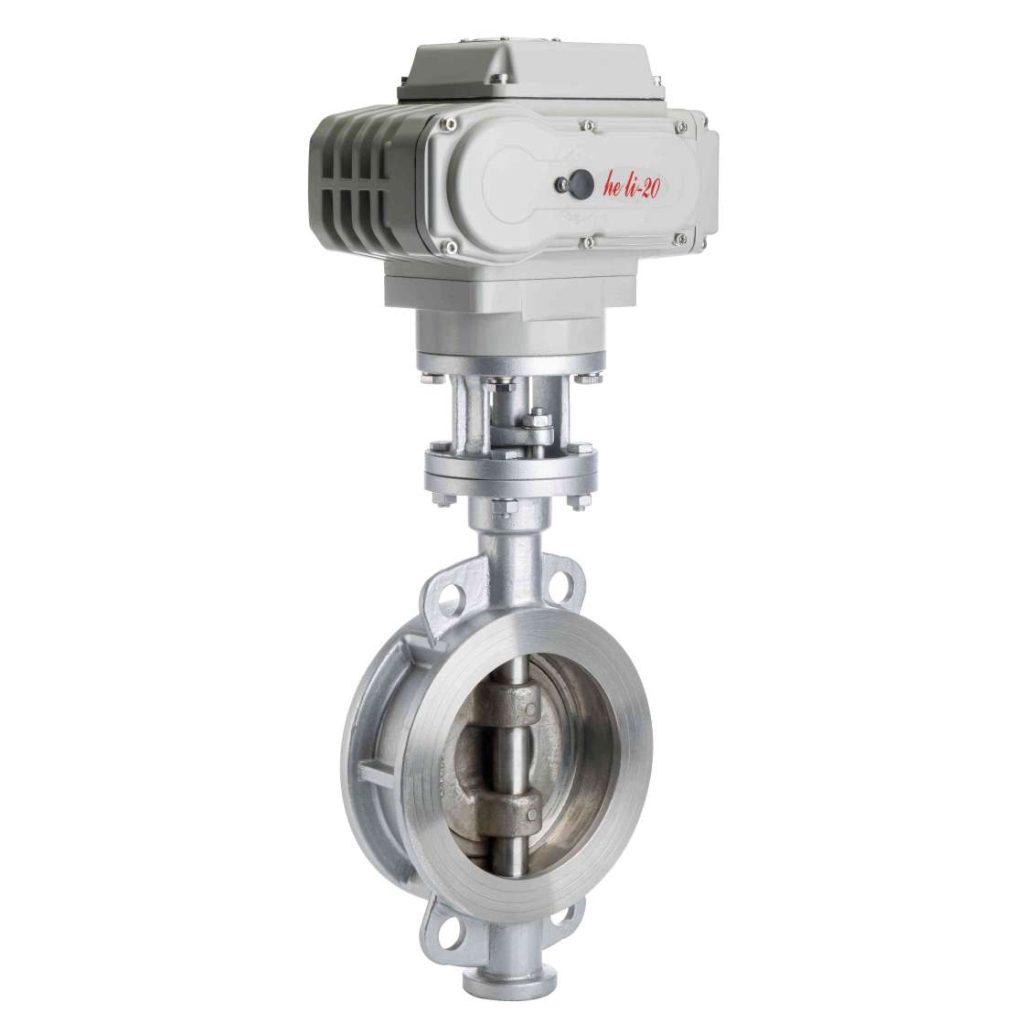

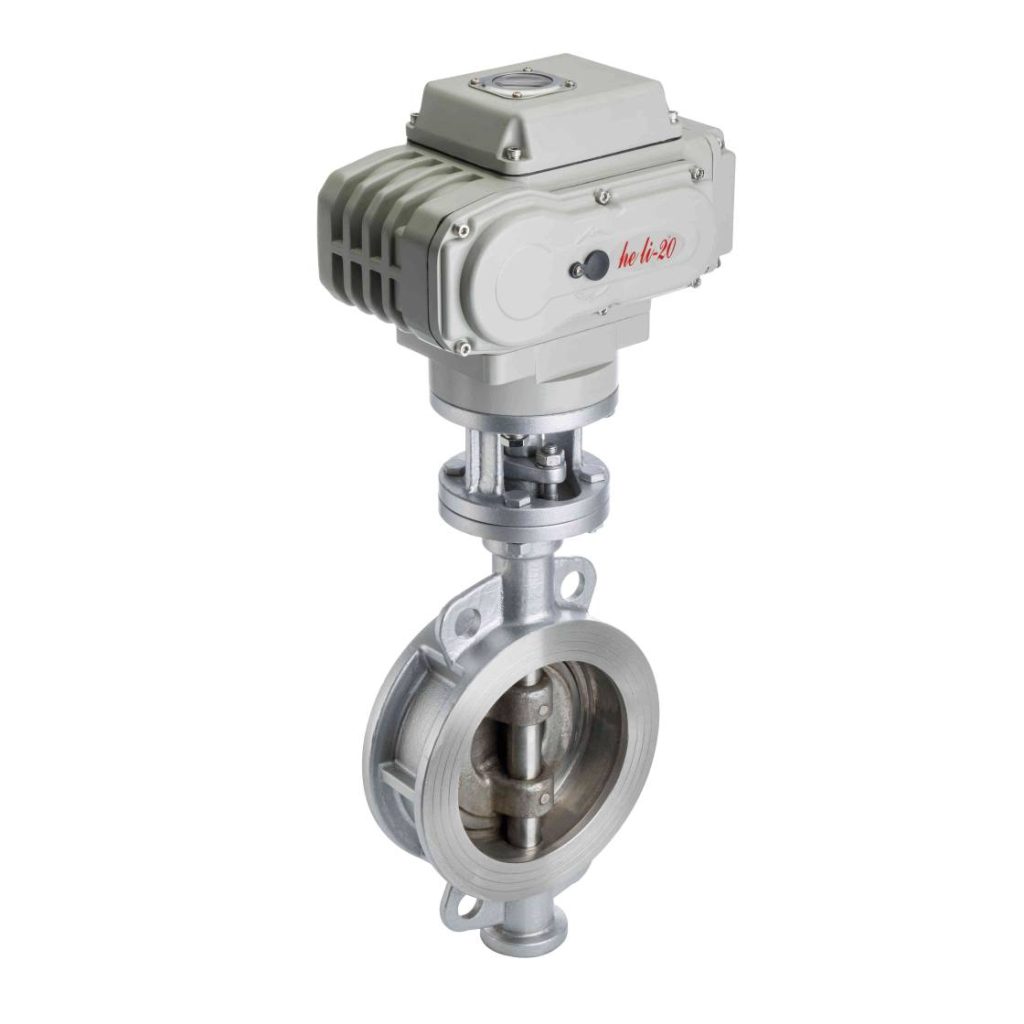

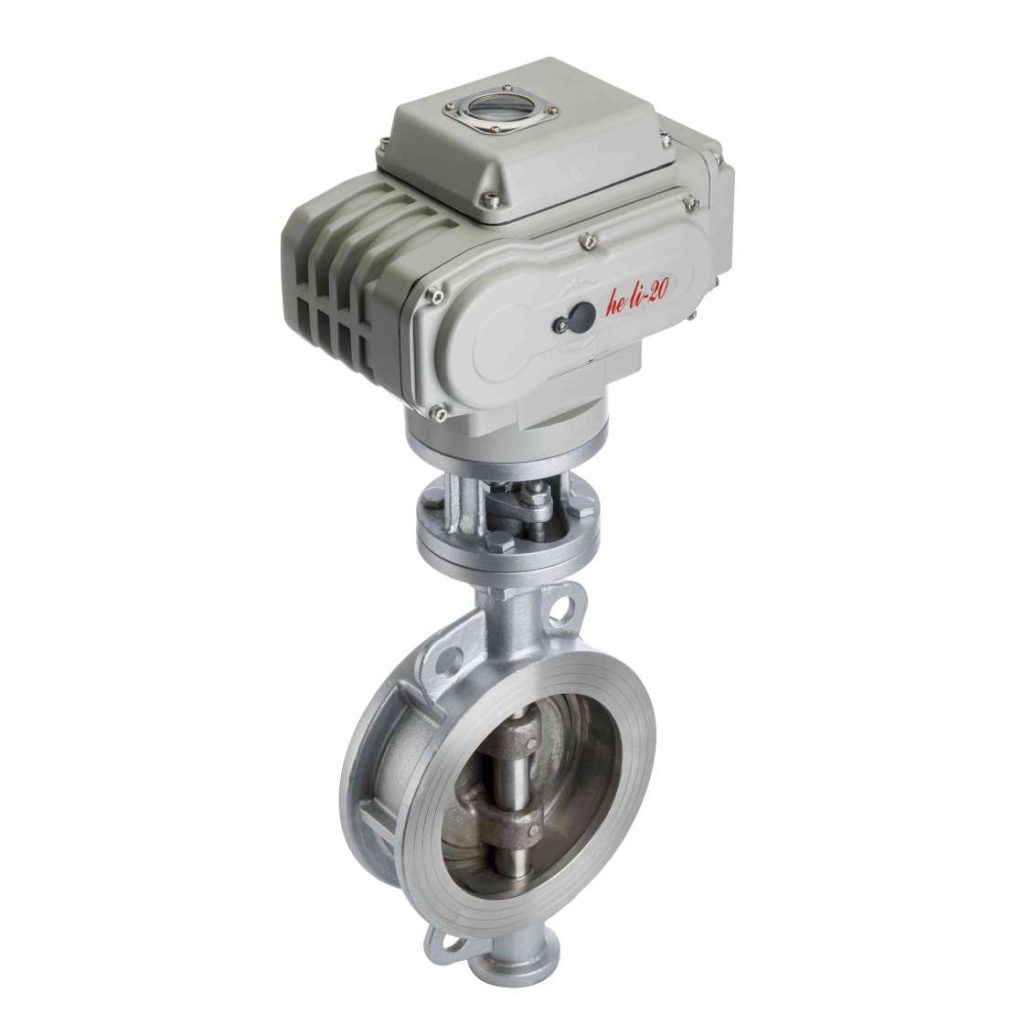

Electric three eccentric butterfly valves are widely used in industrial applications where precise flow control is critical. These valves, which combine advanced features and reliable performance, are designed to regulate the flow of liquids, gases, and other media in various piping systems. The “three eccentric” design refers to the configuration of the valve’s stem, disc, and seat, which enables enhanced sealing performance, reduced wear, and longer service life. In this article, we will explore the construction, working principle, advantages, and applications of the electric three eccentric butterfly valve.

Construction and Working Principle

An electric three eccentric butterfly valve consists of several key components, including the valve body, valve disc, stem, actuator, and sealing system. The “three eccentric” design refers to the offset positioning of the disc and stem, which creates an effective sealing mechanism. In a conventional butterfly valve, the disc and stem are aligned, which can cause friction between the seat and disc, leading to wear and leakage. The three eccentric design addresses this issue by introducing three levels of offset: First Eccentricity: The disc is offset from the centerline of the valve body, which prevents direct contact with the seat when the valve is fully closed.
