In today’s rapidly advancing technological landscape, the need for precise control and automation has become essential across many industries. One of the fundamental components that facilitate this control is the relay, particularly the 12V relay. This device is pivotal in various applications, ranging from automotive systems to household appliances, and even industrial automation. Understanding its operation, construction, and diverse applications can illuminate its vital role in modern electrical systems.

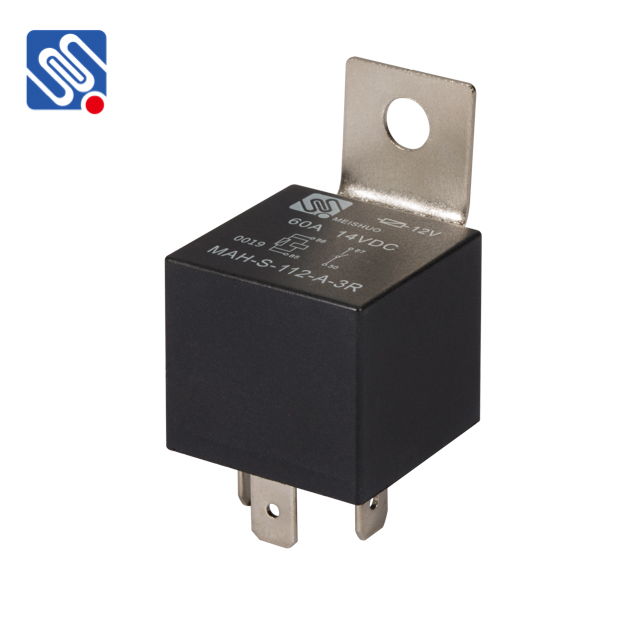

What is a Relay? A relay is an electromechanical switch that utilizes an electromagnetic coil to control one or more sets of contacts. When an electric current passes through the coil, it generates a magnetic field that attracts a movable armature, thereby either opening or closing the contacts. A 12V relay operates on a nominal voltage of 12 volts, which is commonly used in various electronic devices and systems. Construction of a 12V Relay A typical 12V relay consists of several key components： Electromagnetic Coil： The coil is wrapped around a core and is responsible for generating the magnetic field when energized. It is usually rated for 12 volts.
