Testing an industrial relay with a multimeter is a crucial skill for anyone working in electrical maintenance or troubleshooting. Relays are essential components in industrial automation, controlling large currents with low power signals. A malfunctioning relay can cause significant downtime and damage to the connected systems. Therefore, testing a relay’s functionality using a multimeter can save time and money. This guide will walk you through the step-by-step process of testing an industrial relay using a multimeter, ensuring that you can assess both the coil and the contact points effectively.

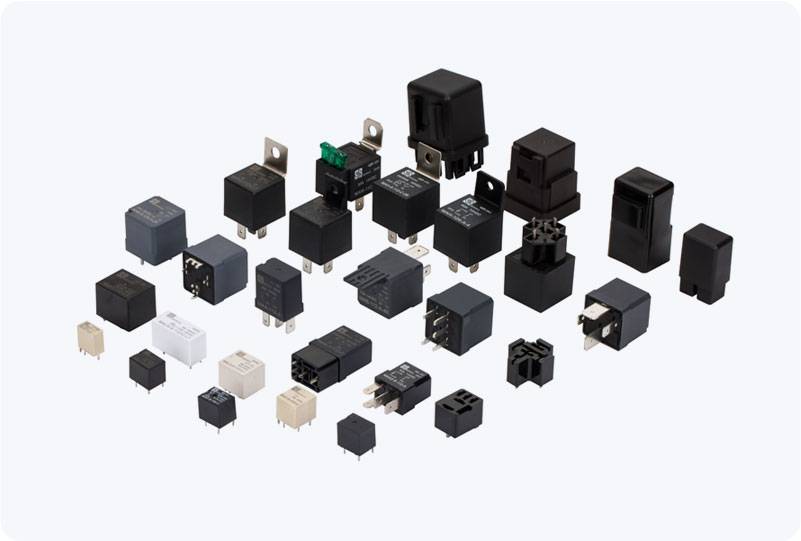

Understanding the Industrial Relay Before diving into the testing process, it’s important to understand the basic structure of an industrial relay. Typically, a relay consists of two key parts： Coil： The coil is energized by an electrical current, creating a magnetic field that moves the contacts. Contacts： The contacts can be Normally Open (NO), Normally Closed (NC), or Changeover (CO). The role of these contacts is to control the flow of electricity in the circuit by opening or closing based on the relay’s activation. When the coil is powered, the contacts either open or close, depending on whether they are NO or NC. Testing the relay ensures both these components are functioning as expected.
