Relays are integral components in modern electrical systems, enabling the control of high-power circuits with low-power signals. Among the different types of relays, the 24V relay has emerged as one of the most popular options, primarily due to its versatile applications in both industrial and residential settings. Whether you are designing automation systems or building a simple control circuit, understanding how Relay 24V works can significantly enhance your project’s efficiency and reliability.

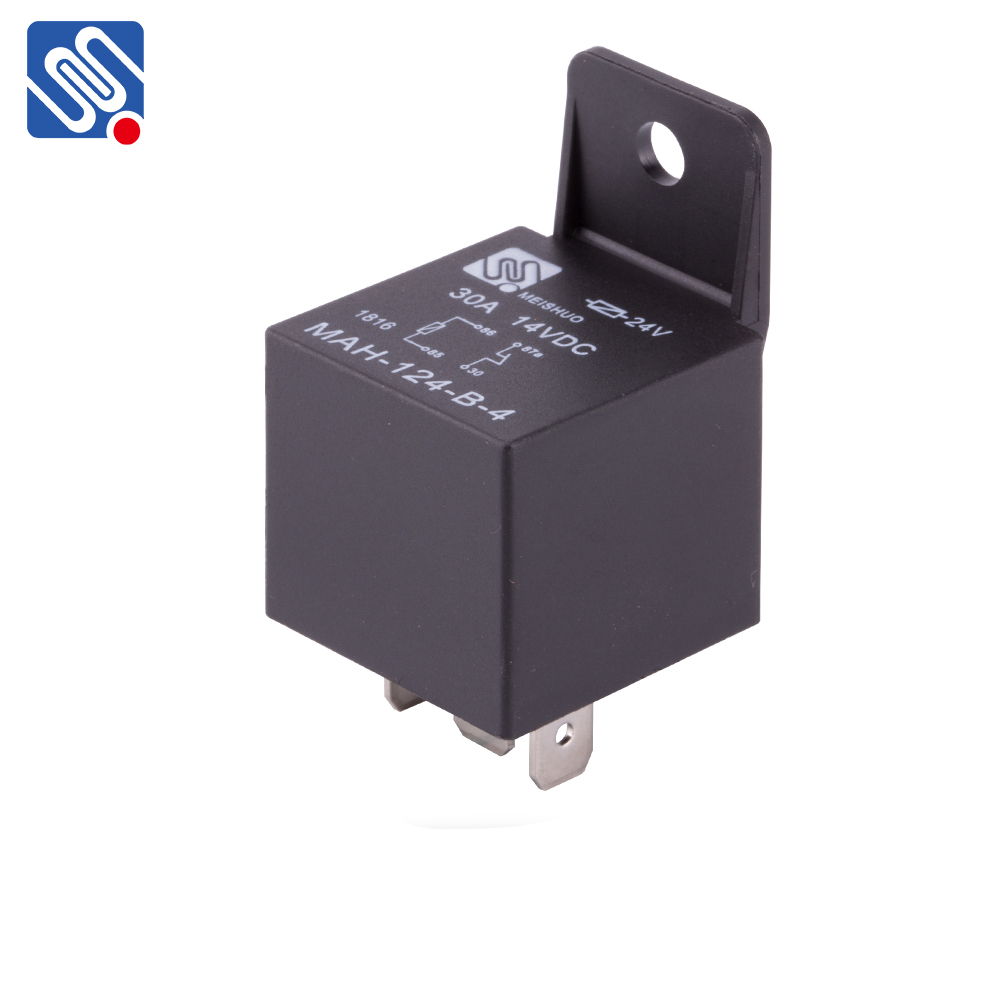

What is a 24V Relay? A 24V relay is an electrical device that uses an electromagnet to open or close contacts in a circuit. It is designed to be powered by a 24-volt DC (direct current) or AC (alternating current) signal. The core function of a relay is to control a secondary circuit using a small input voltage (in this case, 24V), which can switch on/off larger currents in a primary circuit. When a 24V signal is applied to the relay’s coil, it generates a magnetic field, which activates the internal switch. The switch then either opens or closes, depending on the relay’s design, thereby controlling the flow of current in the circuit. This ability to control high-voltage or high-current circuits with low-voltage signals makes relays crucial in a variety of applications.
