relay circuit design： principles, applications, and key considerations

Relay circuits are integral components in electrical engineering, particularly in automation, control systems, and power electronics. A relay is an electrically operated switch that uses a low voltage, low current signal to control a higher voltage and current circuit. These circuits provide safety, reliability, and flexibility in managing electrical systems. This article will explore the principles behind relay circuit design, its common applications, and key considerations to keep in mind when designing relay-based circuits.

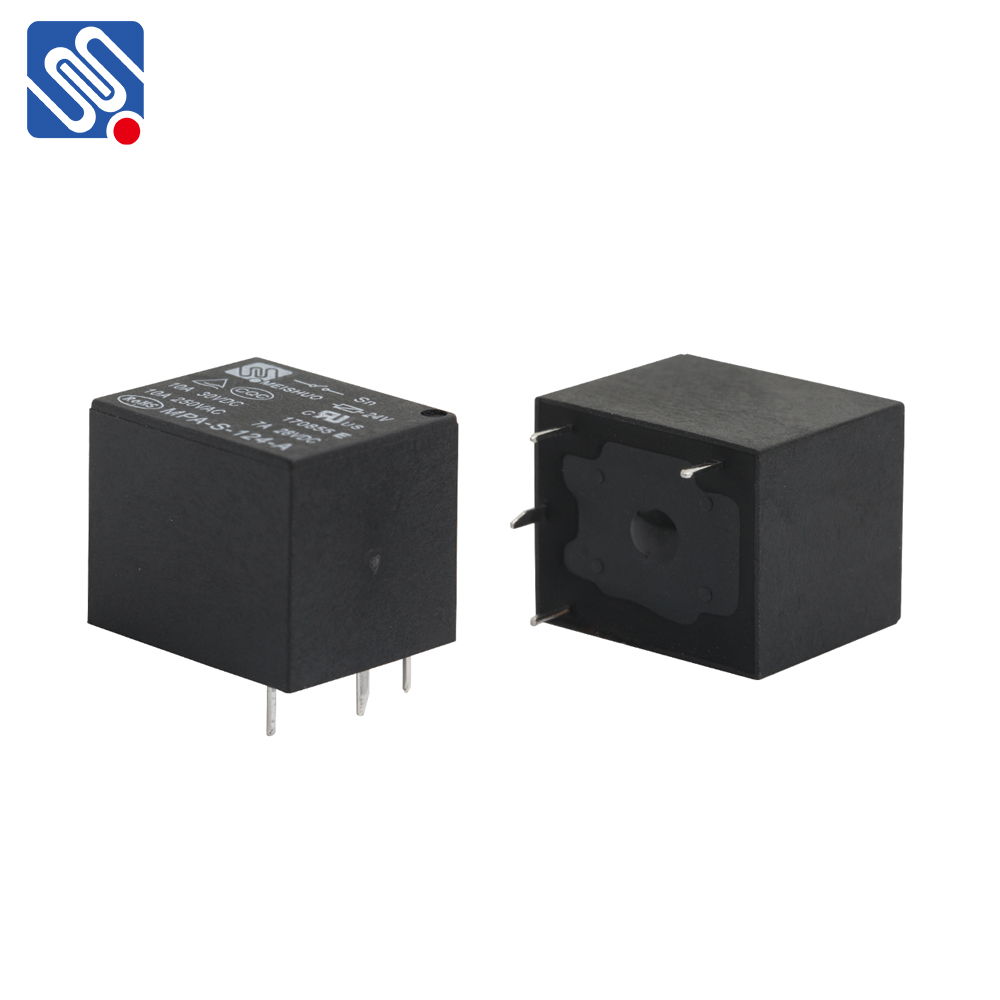

Understanding Relay Circuit Design At its core, a relay consists of a coil, contacts (also called switches), and a movable armature. When a current flows through the coil, it generates a magnetic field, attracting the armature, which in turn closes or opens the contacts. This allows a low-power control circuit to control a high-power load. The two most common types of relay contacts are： Normally Open (NO)： In this state, the contacts are open when the relay is not energized. When the coil is energized, the contacts close, completing the circuit. Normally Closed (NC)： Here, the contacts are closed when the relay is not energized. Energizing the coil opens the contacts, interrupting the circuit.
