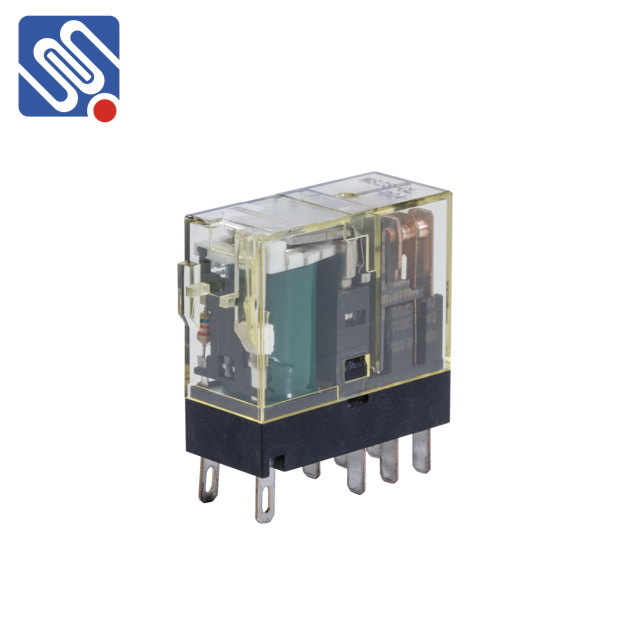

When designing electrical circuits, one of the most crucial components to consider is the relay. A relay is an electrically operated switch that allows a small current to control a larger current, providing both convenience and safety in a wide range of applications. Choosing the appropriate relay for a specific task is vital for ensuring optimal performance, safety, and longevity of the circuit. This process, known as relay type selection, involves several considerations to match the right relay to the requirements of the circuit.
Understanding Relays and Their Role Relays work by using an electromagnet to control the opening and closing of electrical contacts. These contacts are used to switch electrical power to a load, and the relay itself is typically controlled by a low-voltage signal, such as from a microcontroller or a control panel. Relays are employed in applications ranging from basic on/off switches to complex systems that require multiple switching points or the management of high-power circuits. Key Factors in Relay Type Selection 1. Voltage and Current Ratings The first step in selecting a relay is determining the voltage and current requirements of the system. The coil voltage, which energizes the relay, must be matched with the available control signal voltage. For example, if the control system operates at 12V DC, then a relay with a 12V coil rating should be selected.
