Pneumatic actuators are vital components in numerous industrial and automation systems, transforming compressed air energy into mechanical motion. Their simplicity, speed, and cost-effectiveness make them an essential choice for a wide range of applications, from factory automation to automotive systems. This article will explore the working principles, types, applications, and advantages of pneumatic actuators, shedding light on why they are indispensable in modern mechanical processes.
What is a Pneumatic Actuator?

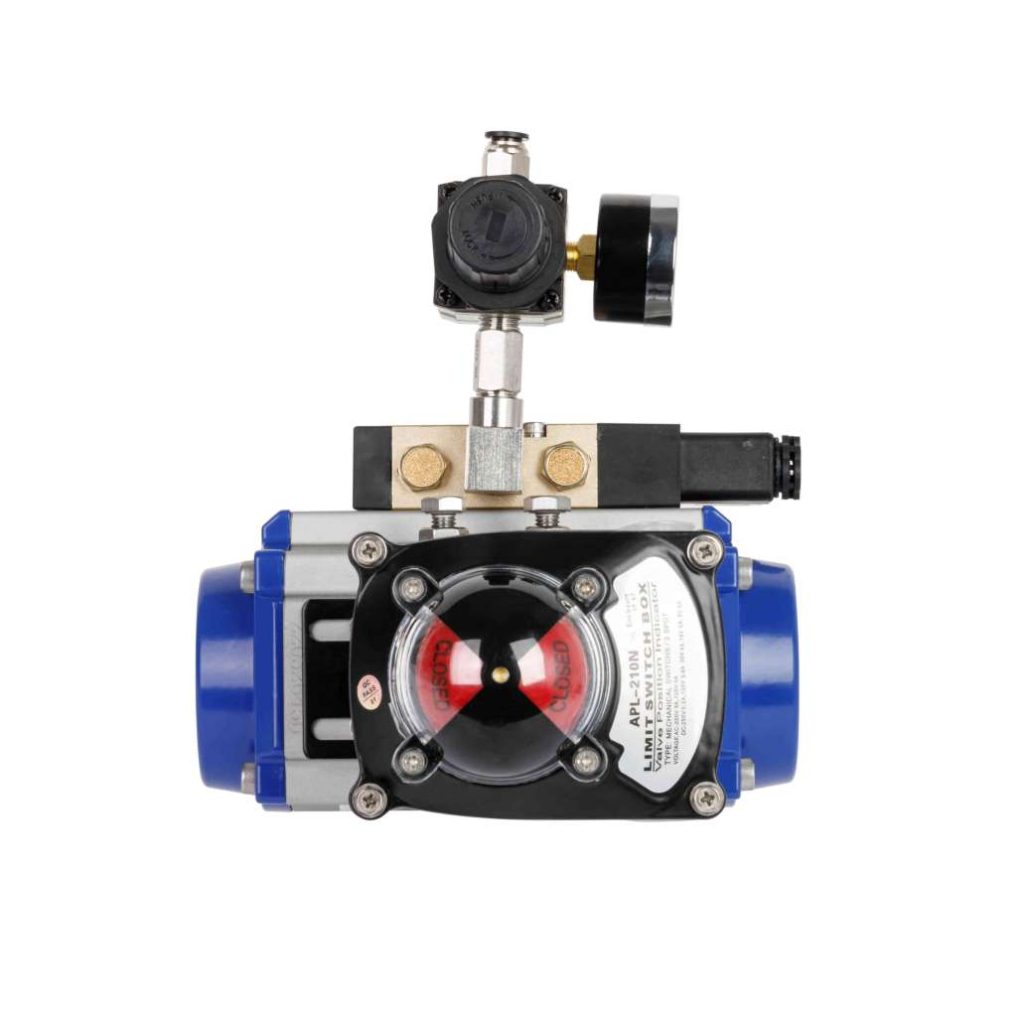

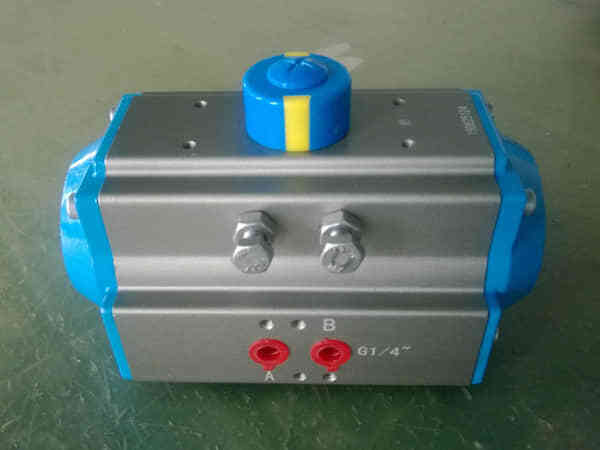

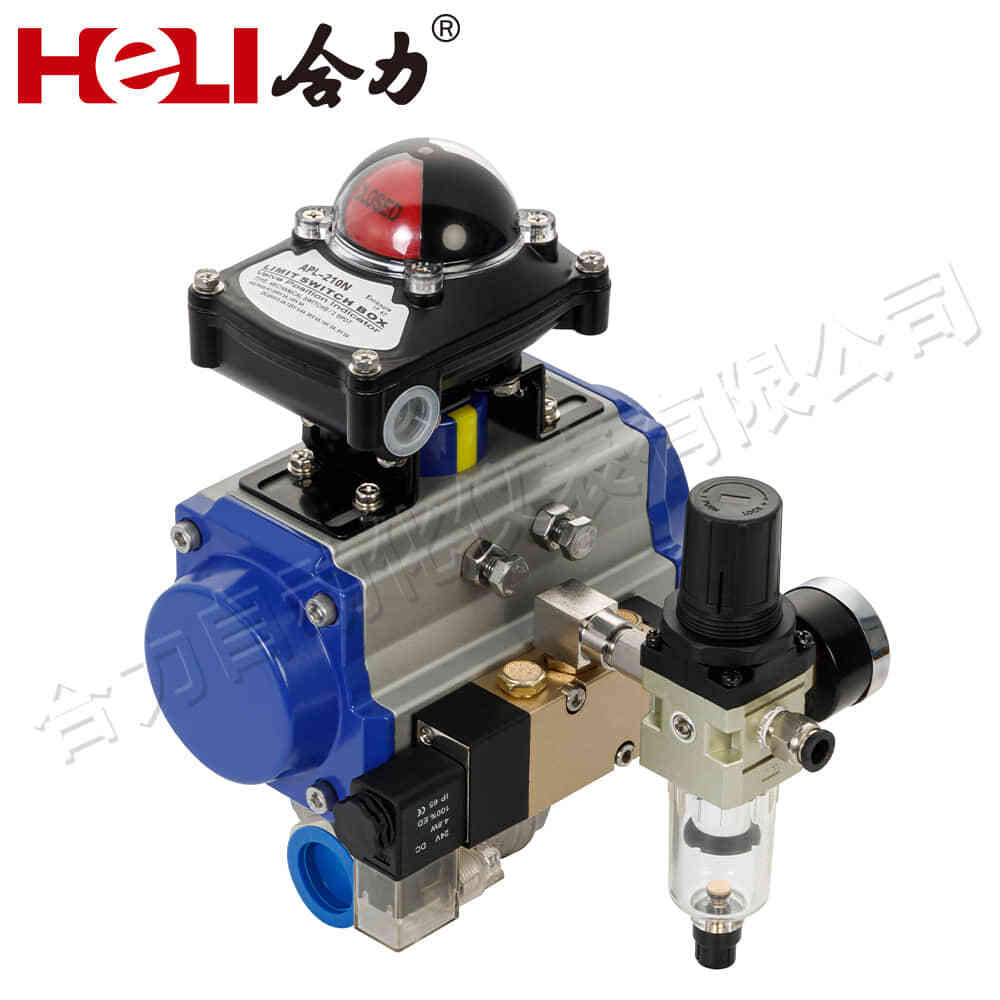

A pneumatic actuator is a mechanical device that uses compressed air to generate motion. This motion can either be linear (straight-line movement) or rotary (circular movement), depending on the design and application of the actuator. The actuator works by converting the energy from compressed air into mechanical force to move or control equipment. This process is essential in systems where precise and rapid movements are necessary. Working Principle The working principle of a pneumatic actuator is relatively straightforward. Compressed air is introduced into the actuator’s cylinder, where it pushes against a piston or diaphragm. This movement creates mechanical force that drives an output shaft, which then performs the desired motion. The air pressure is controlled through valves that regulate the amount of air entering and exiting the actuator, thus controlling the actuator’s motion speed and force.
