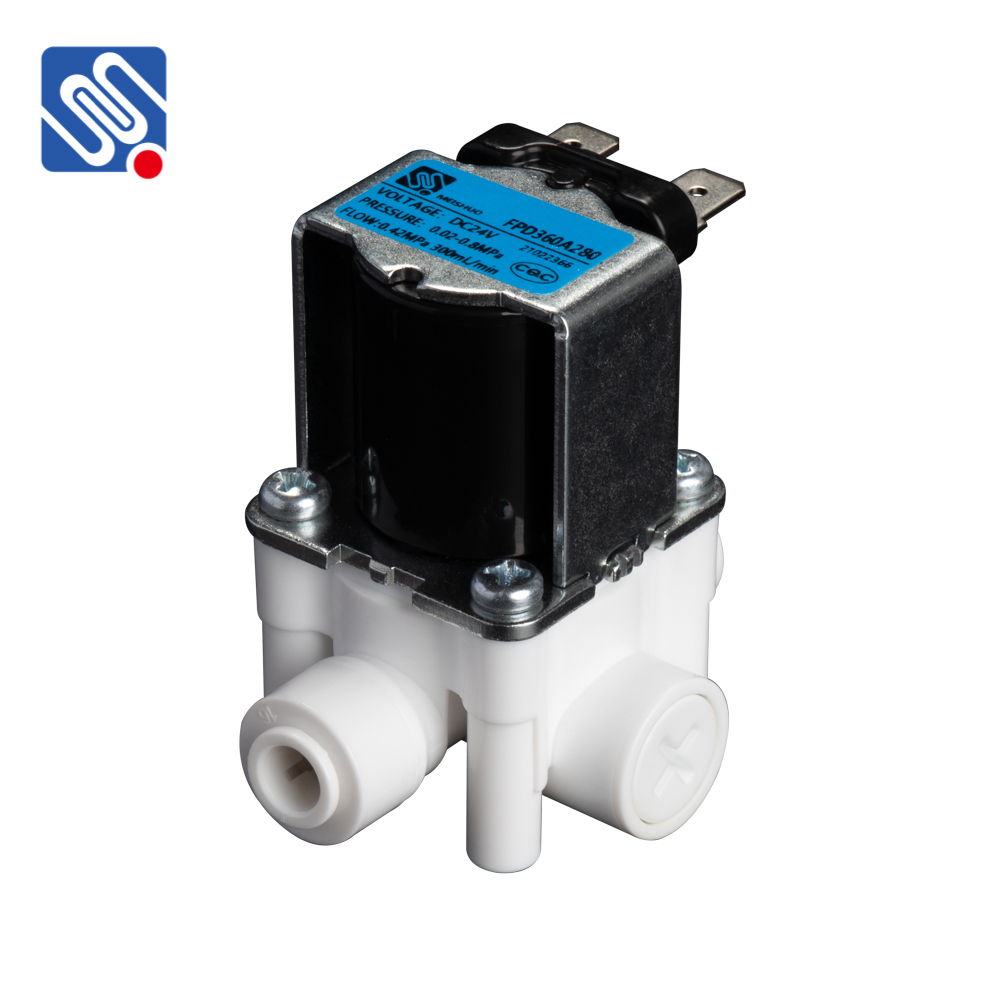

A DC Solenoid Valve is an essential component in fluid control systems, using electromagnetism to regulate the flow of liquids, gases, or steam. These valves are commonly found in various industries, including automation, automotive, and HVAC (heating, ventilation, and air conditioning). Their ability to offer precise control and fast response makes them a popular choice for systems requiring accurate fluid regulation. This article will explore the working principle, types, applications, and advantages of DC Solenoid Valves.
Working Principle of DC Solenoid Valve The basic operation of a solenoid valve relies on the electromagnetic force generated when an electric current passes through a coil of wire. In the case of a DC solenoid valve, the electric current is direct current (DC), which has several implications for how the valve operates. When current flows through the solenoid coil, it creates a magnetic field that moves a plunger or armature. This movement either opens or closes the valve, controlling the flow of fluid through the valve body. The core component, the solenoid, is typically a coil of copper wire wound around a magnetic core. In its simplest form, a DC solenoid valve may be normally open (NO), meaning that it allows the flow of fluid when no current is supplied. When a DC current is applied, the solenoid’s magnetic field pulls the valve’s plunger, causing the valve to close. Conversely, in a normally closed (NC) valve, the solenoid’s magnetic field opens the valve when power is applied.
