Electric bellows stop valves play a crucial role in various industrial applications by providing efficient control of fluid flow. These valves utilize a unique mechanism that combines electric actuation with bellows technology, ensuring reliable operation and minimal leakage. This article explores the design, functionality, advantages, and applications of electric bellows stop valves, highlighting their significance in modern engineering.
Design and Mechanism

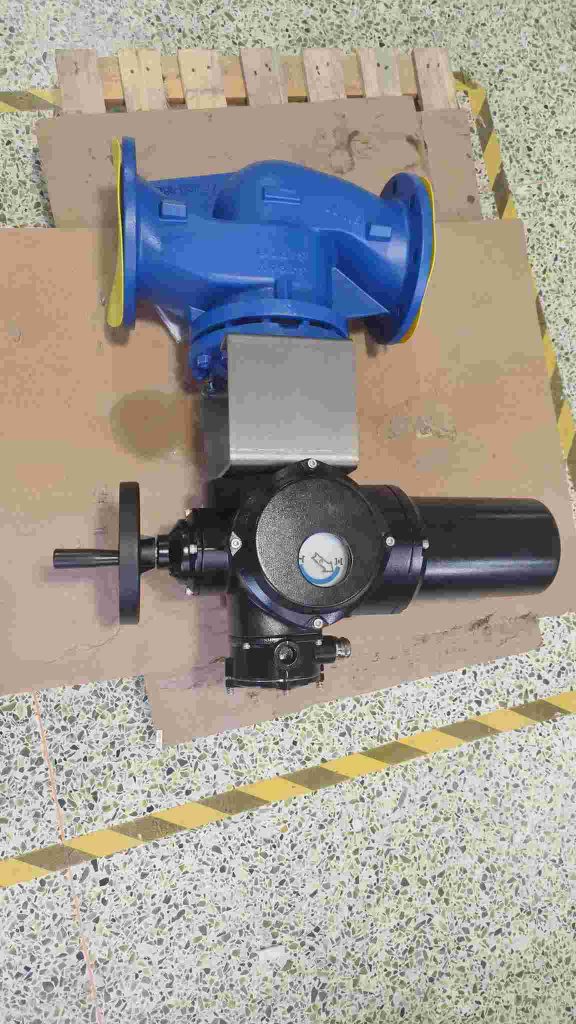

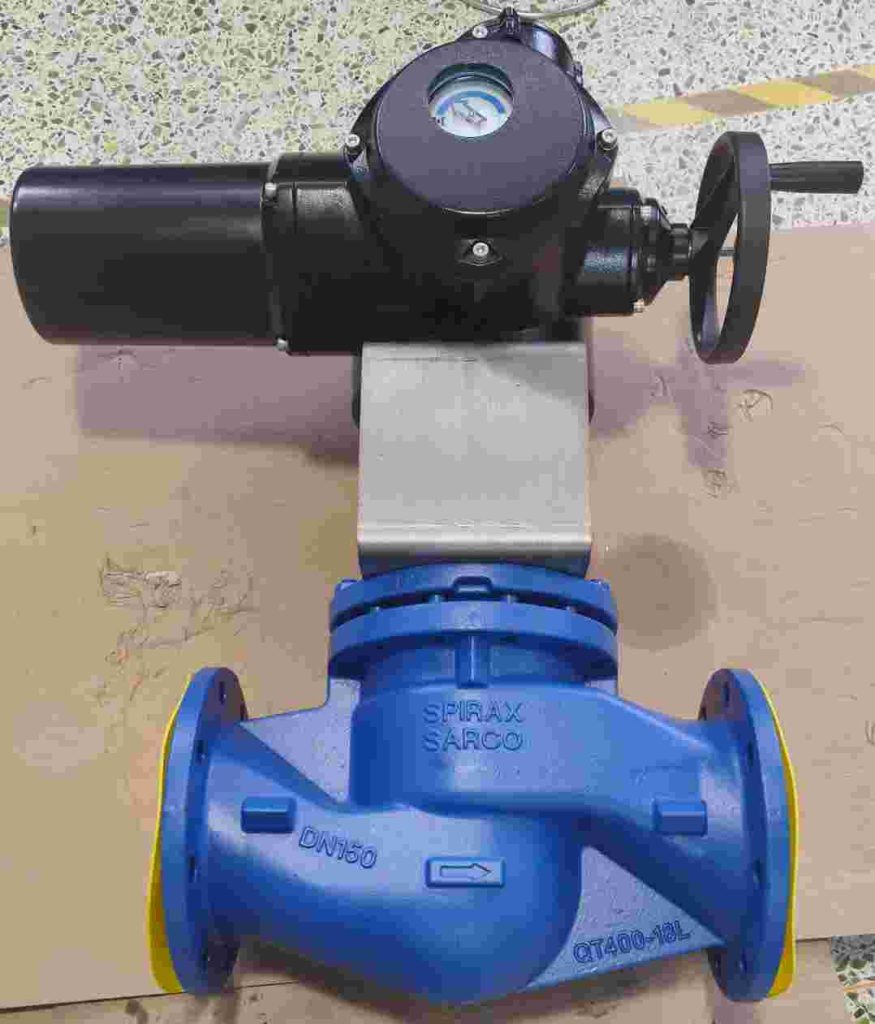

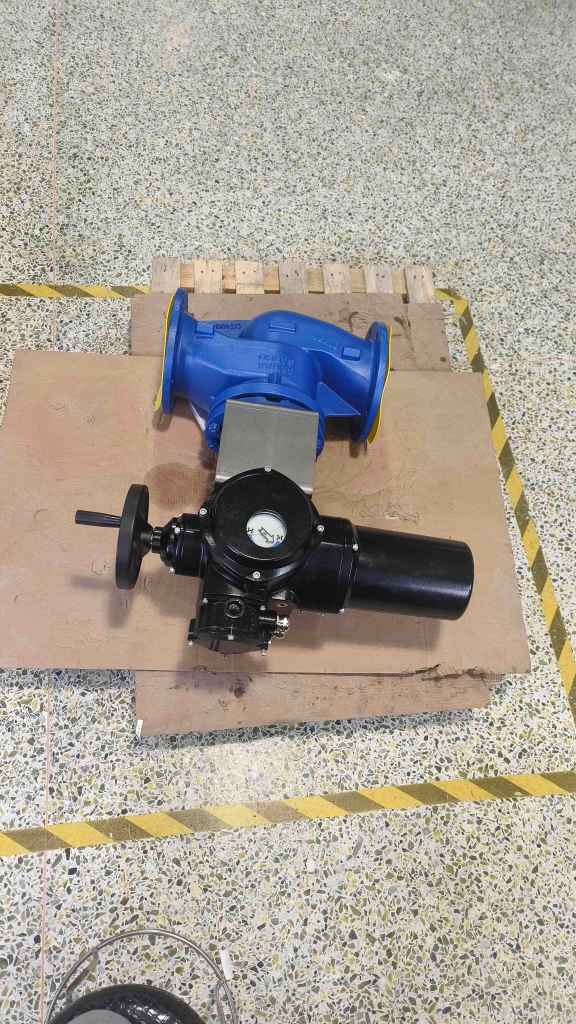

An electric bellows stop valve consists of several key components: the valve body, bellows assembly, electric actuator, and control system. The valve body, typically made from robust materials such as stainless steel or carbon steel, houses the internal mechanisms. The bellows assembly is made of flexible materials that can withstand pressure and temperature variations, allowing for a tight seal when closed. The electric actuator is responsible for opening and closing the valve. It receives signals from a control system, which may be manual or automated, allowing for precise control over the valve’s position. When the actuator is energized, it moves the valve stem, compressing or expanding the bellows to either allow or restrict flow. This design minimizes the risk of leakage, as the bellows create a tight seal even under high pressures.
