Electric clamp butterfly valves are essential components in various industrial applications, known for their efficiency and reliability in regulating fluid flow. This article explores the design, working principle, applications, and advantages of electric clamp butterfly valves, providing insights into why they are a preferred choice in many sectors.
What is an Electric Clamp Butterfly Valve?

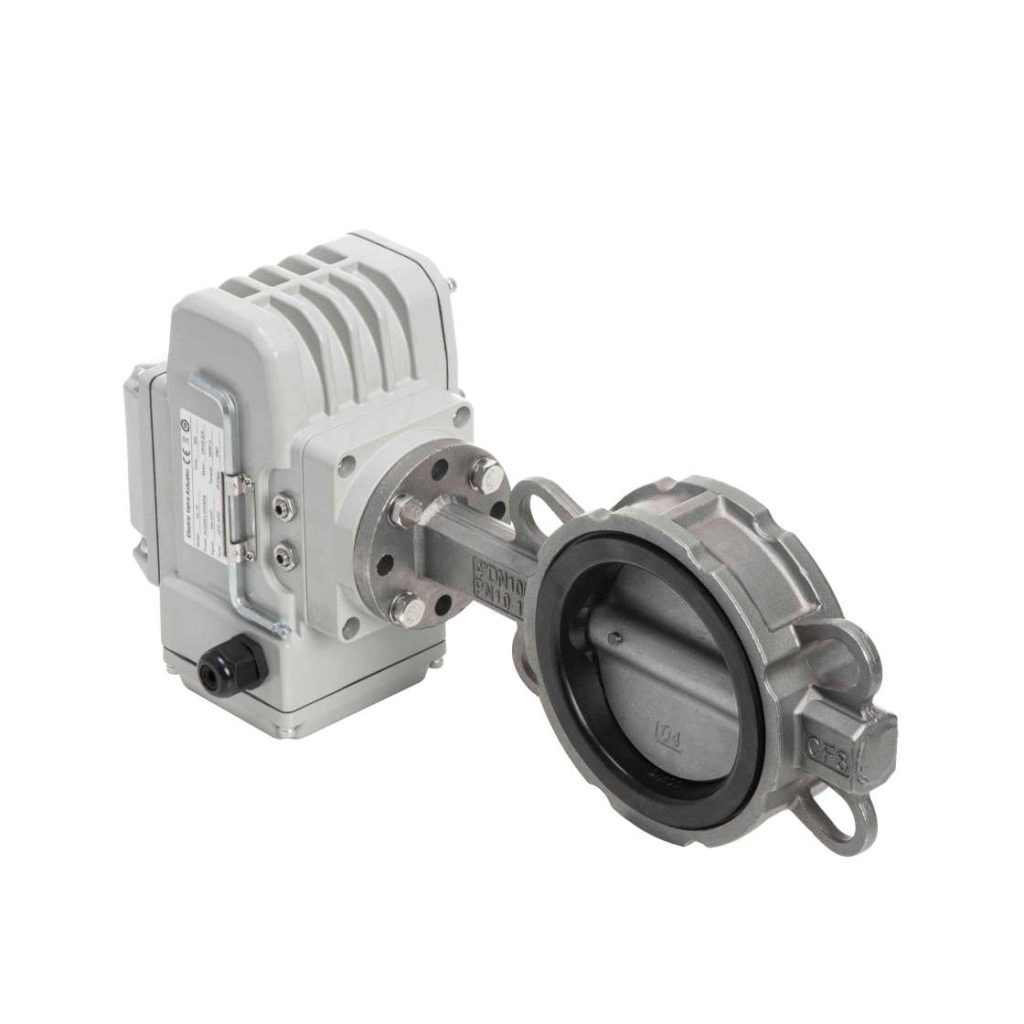

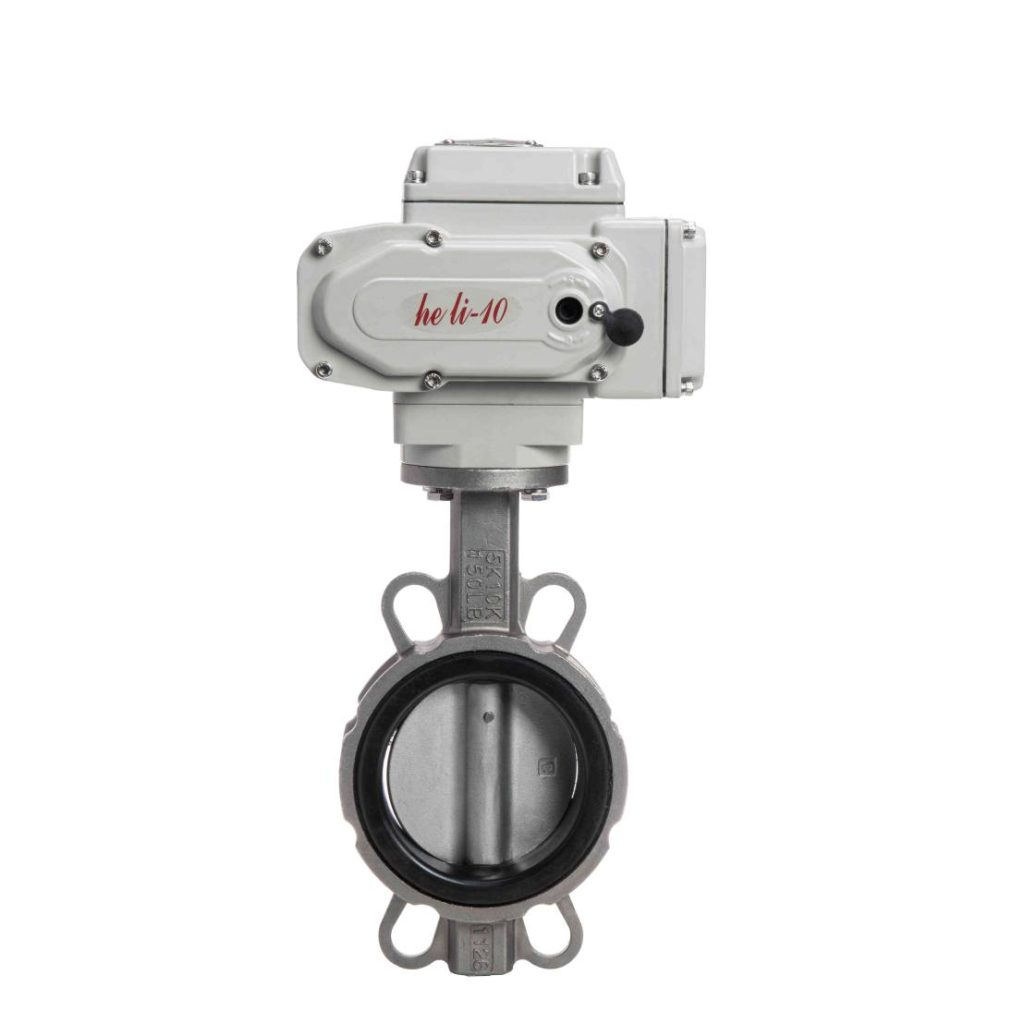

An electric clamp butterfly valve is a type of valve that uses a rotating disc to control the flow of fluids. The valve’s body typically comprises a short cylindrical passage with a disc or plate that rotates around an axis perpendicular to the flow. The valve is equipped with an electric actuator, allowing for remote operation and automated control. The “clamp” aspect refers to the method of securing the valve to the piping system, ensuring a tight seal and preventing leaks. Working Principle The functioning of an electric clamp butterfly valve is straightforward. When the valve is in the closed position, the disc obstructs the flow, creating a seal against the valve seat. To open the valve, the electric actuator rotates the disc by 90 degrees, aligning it parallel to the flow direction, thus allowing fluids to pass through with minimal resistance.
