A pneumatic actuator is a mechanical device that uses compressed air to produce motion, typically linear or rotary. Pneumatic actuators are commonly used in automation systems and industrial applications due to their simplicity, reliability, and cost-effectiveness. In this article, we will explore the working principles, types, applications, and benefits of pneumatic actuators, shedding light on why they are widely preferred in various industries.
Working Principle of Pneumatic Actuators

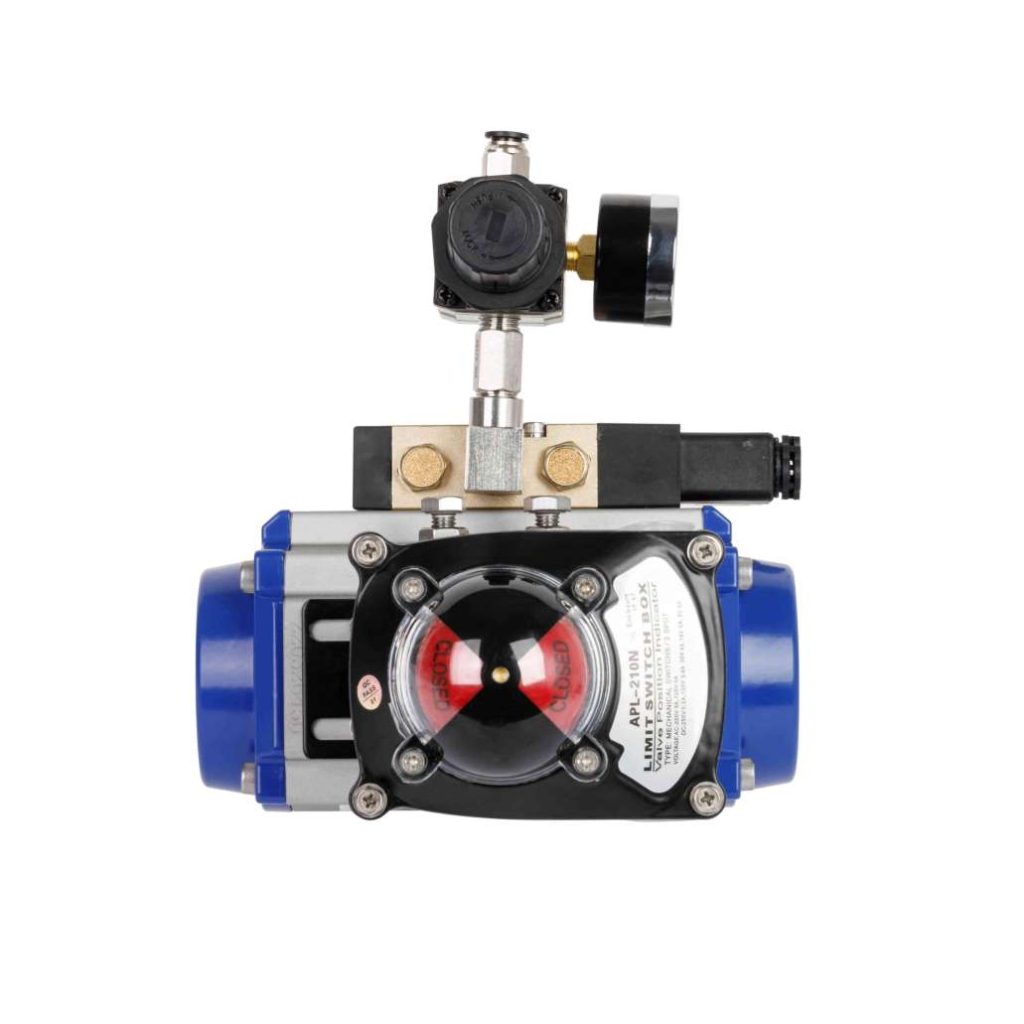

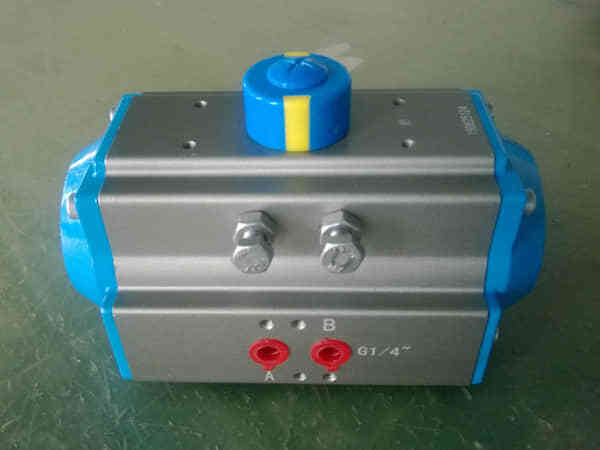

Pneumatic actuators convert the energy stored in compressed air into mechanical work. When compressed air is introduced into the actuator, it drives a piston or diaphragm, causing movement. This movement can either be linear, where the actuator moves in a straight line, or rotary, where the actuator produces a turning motion. In a typical linear pneumatic actuator, a piston is positioned inside a cylinder. When air is pumped into one side of the piston, it pushes the piston in one direction. By controlling the airflow and regulating the pressure, the movement of the piston can be finely controlled. Rotary pneumatic actuators, on the other hand, employ vanes or gears that convert the linear motion of air into rotational movement.
