Pneumatic actuators are widely used mechanical devices that convert compressed air energy into linear or rotary motion. These actuators play a crucial role in various industrial and automation systems due to their reliability, ease of use, and versatility. This article provides an in-depth look into the working principles, common applications, and advantages of pneumatic actuators, shedding light on why they are indispensable in modern engineering.
Working Principle of Pneumatic Actuators

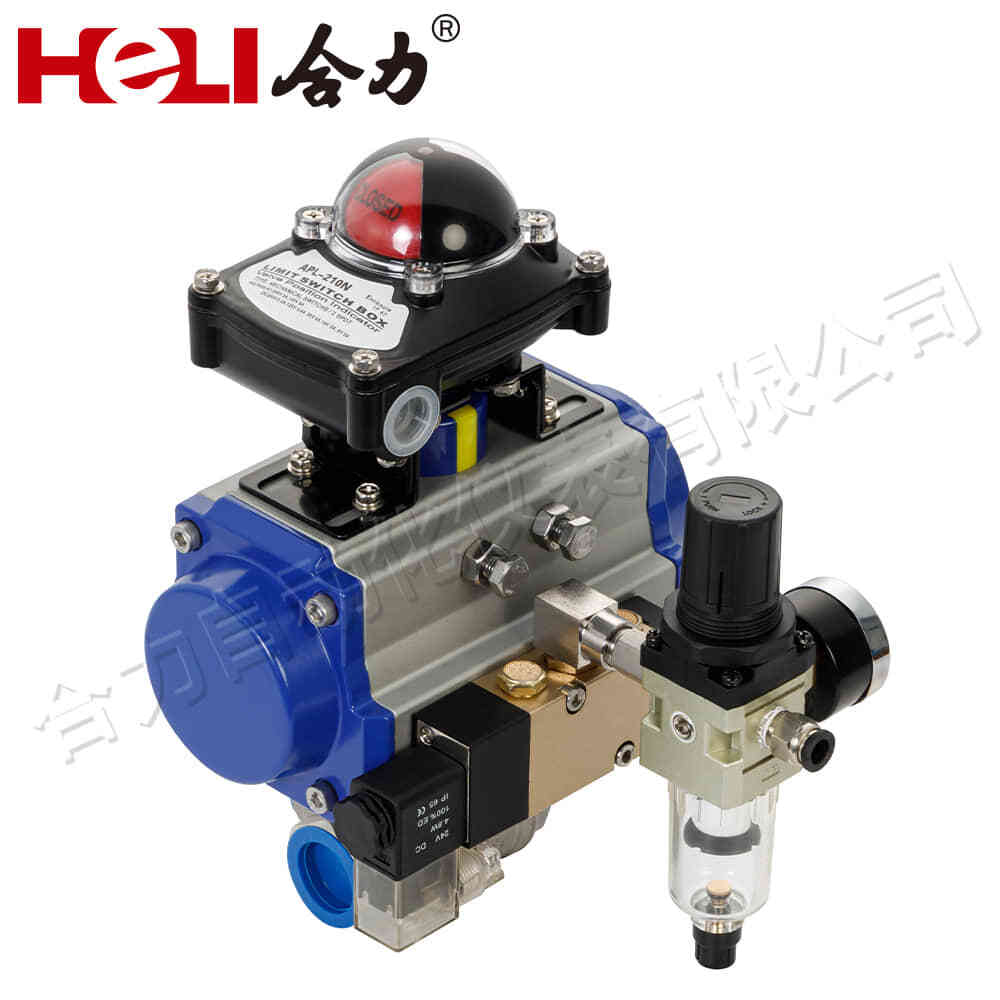

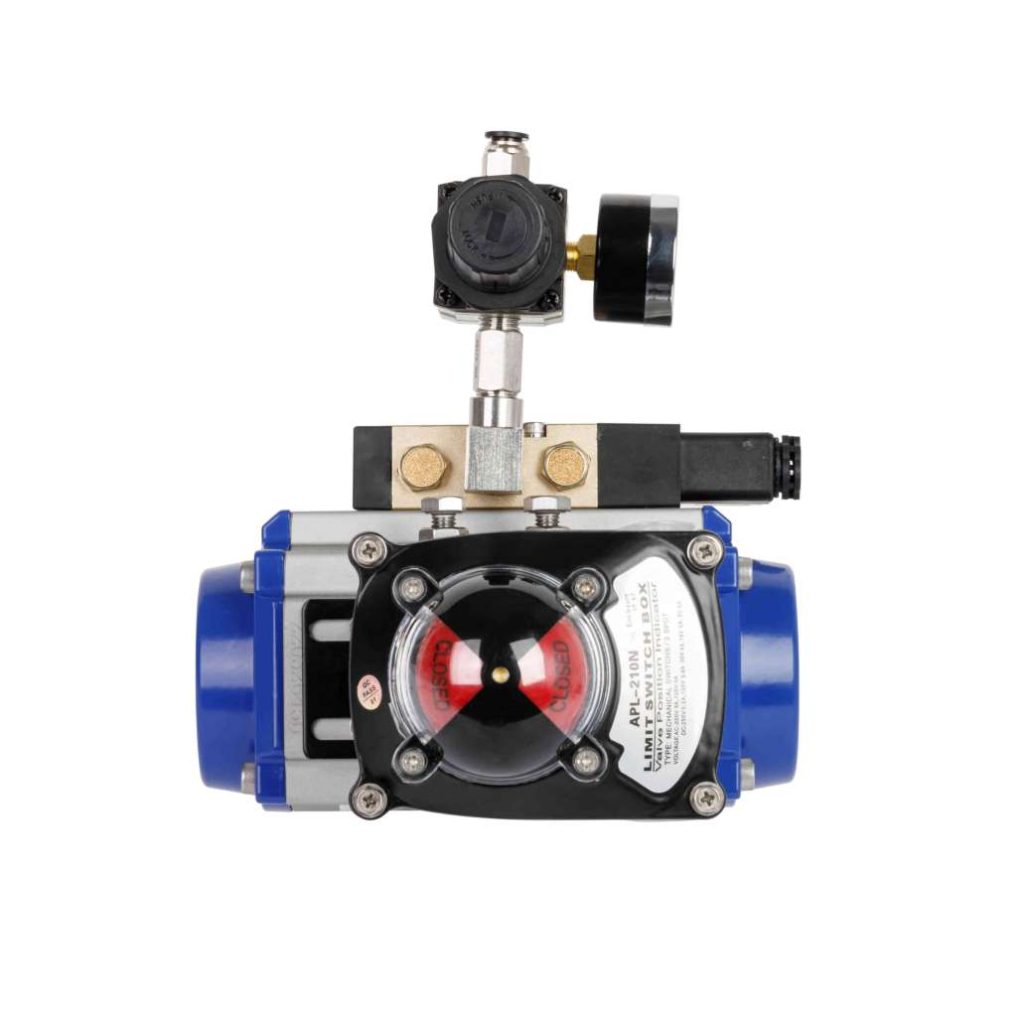

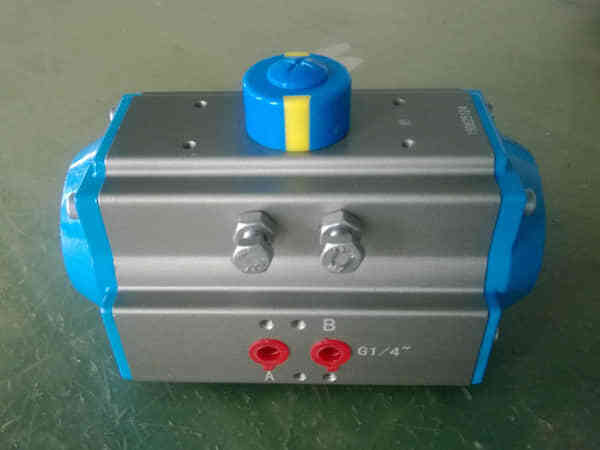

A pneumatic actuator functions by utilizing compressed air to produce motion. When compressed air is supplied to the actuator, it enters a cylinder or piston chamber. Depending on the actuator’s design, this pressurized air causes the piston to move, either linearly (in the case of a linear actuator) or rotationally (in the case of a rotary actuator). The air pressure forces the piston or diaphragm to move in a specific direction, producing mechanical motion. Pneumatic actuators typically consist of several key components: the actuator body, a piston or diaphragm, a valve for controlling air flow, and a return spring (in some models). The pressure of the incoming air can be regulated to control the speed and force of the actuator’s motion, providing flexibility for a range of tasks.
