Pneumatic ball valves are essential components in various industrial applications, primarily for controlling the flow of fluids and gases. As part of a larger system, these valves utilize compressed air to operate, providing an efficient and reliable solution for regulating flow rates in a wide range of environments. This article explores the functionality, applications, and benefits of pneumatic ball valves, highlighting their importance in modern industries.
Functionality of Pneumatic Ball Valves

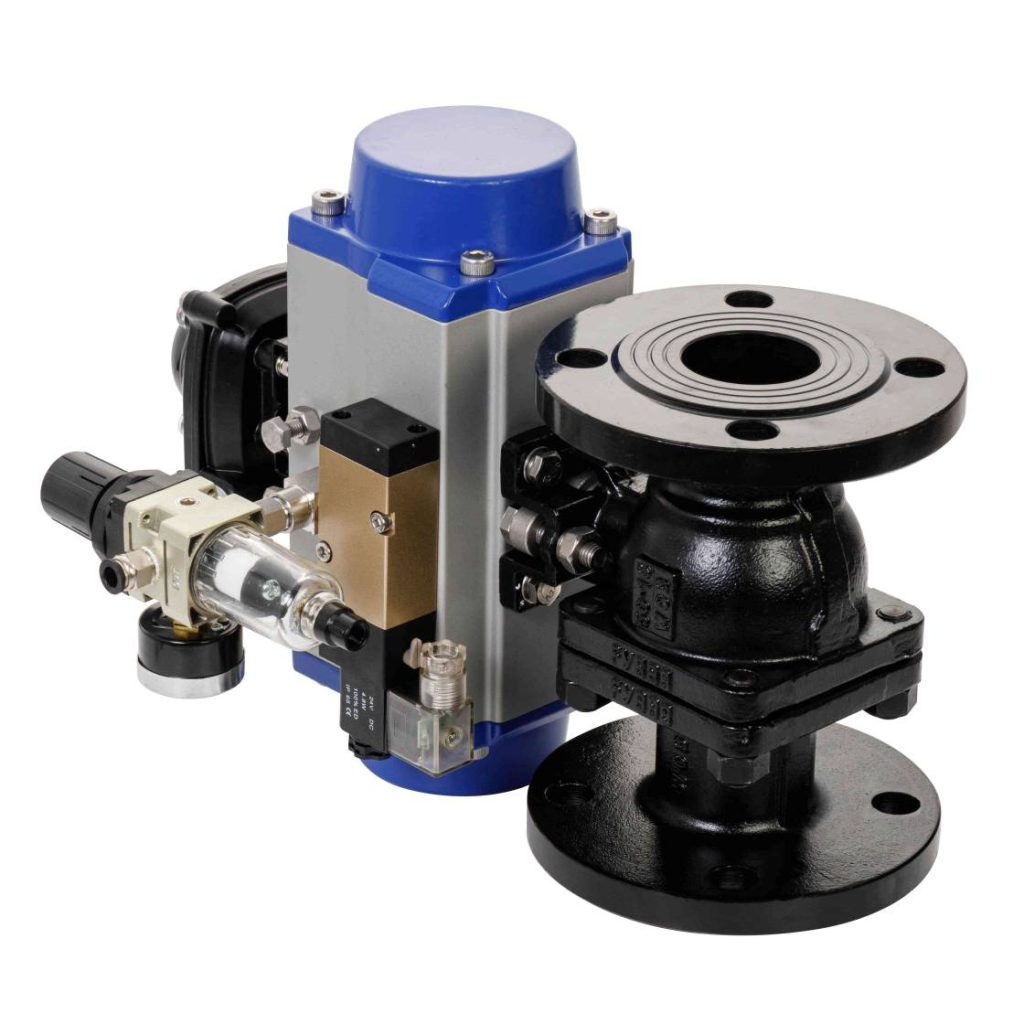

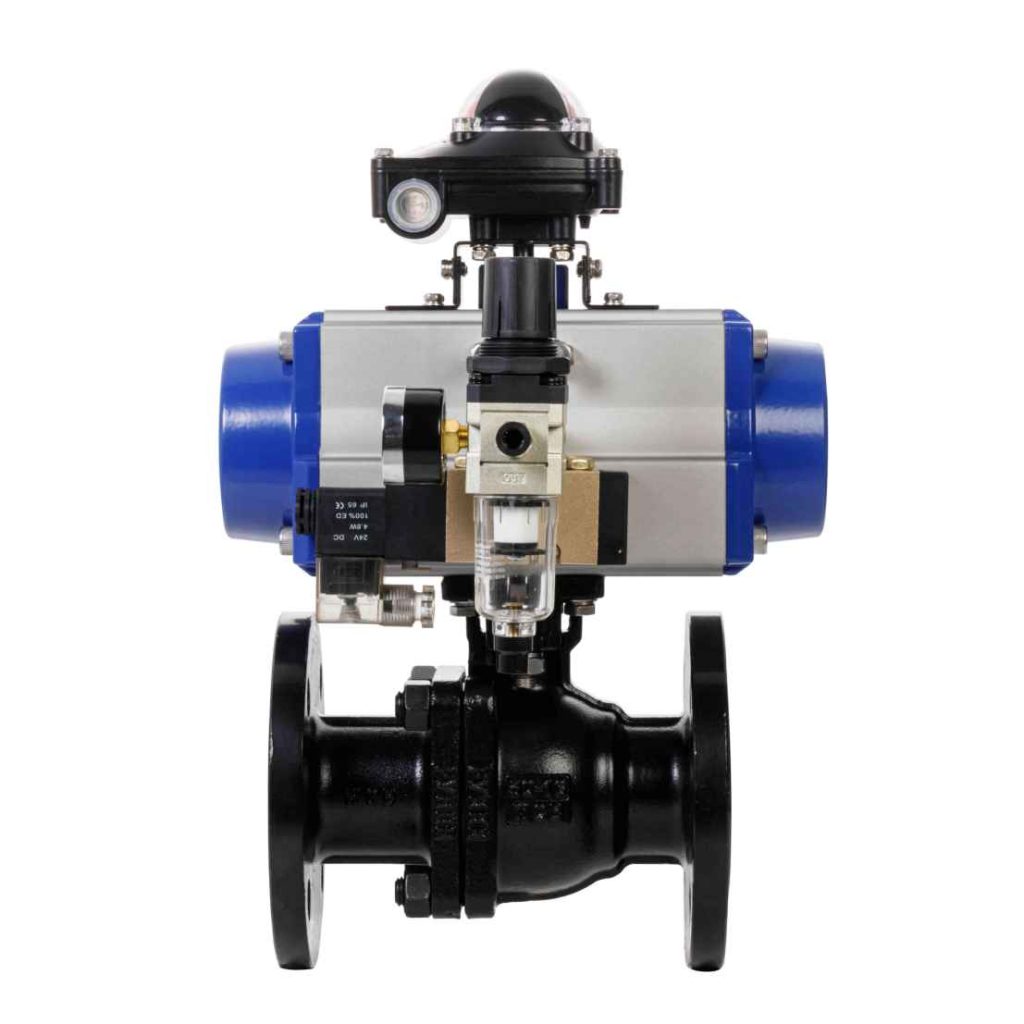

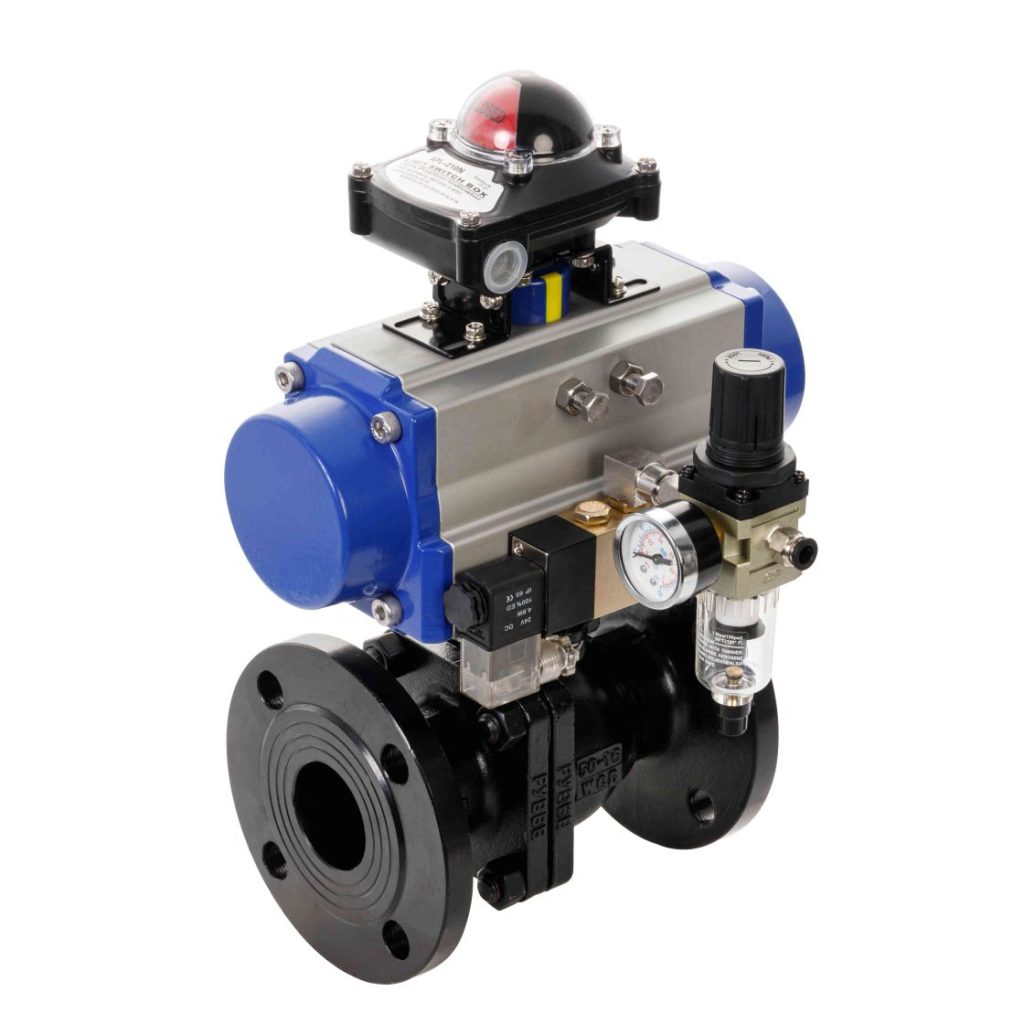

A pneumatic ball valve is designed with a spherical disc, known as a ball, which contains a hole through its center. The valve’s operation is straightforward: when the ball’s hole is aligned with the flow direction, the valve is open, allowing fluid to pass through. Conversely, when the ball is rotated 90 degrees, the hole is perpendicular to the flow, effectively shutting off the passage. The pneumatic aspect of the valve comes into play when it is operated by compressed air, which can be easily controlled using a pneumatic actuator. The actuator can be either single-acting or double-acting. In single-acting actuators, air pressure is used to open the valve, and a spring closes it when the pressure is released. In double-acting actuators, air pressure is applied to both open and close the valve, providing more precise control over its operation.
