Pneumatic butterfly valves are essential components in various industrial applications, primarily due to their ability to regulate the flow of fluids with precision and efficiency. These valves are favored for their compact design, quick operation, and low-pressure drop, making them ideal for a range of processes in sectors such as water treatment, chemical processing, and HVAC systems.
What is a Pneumatic Butterfly Valve?

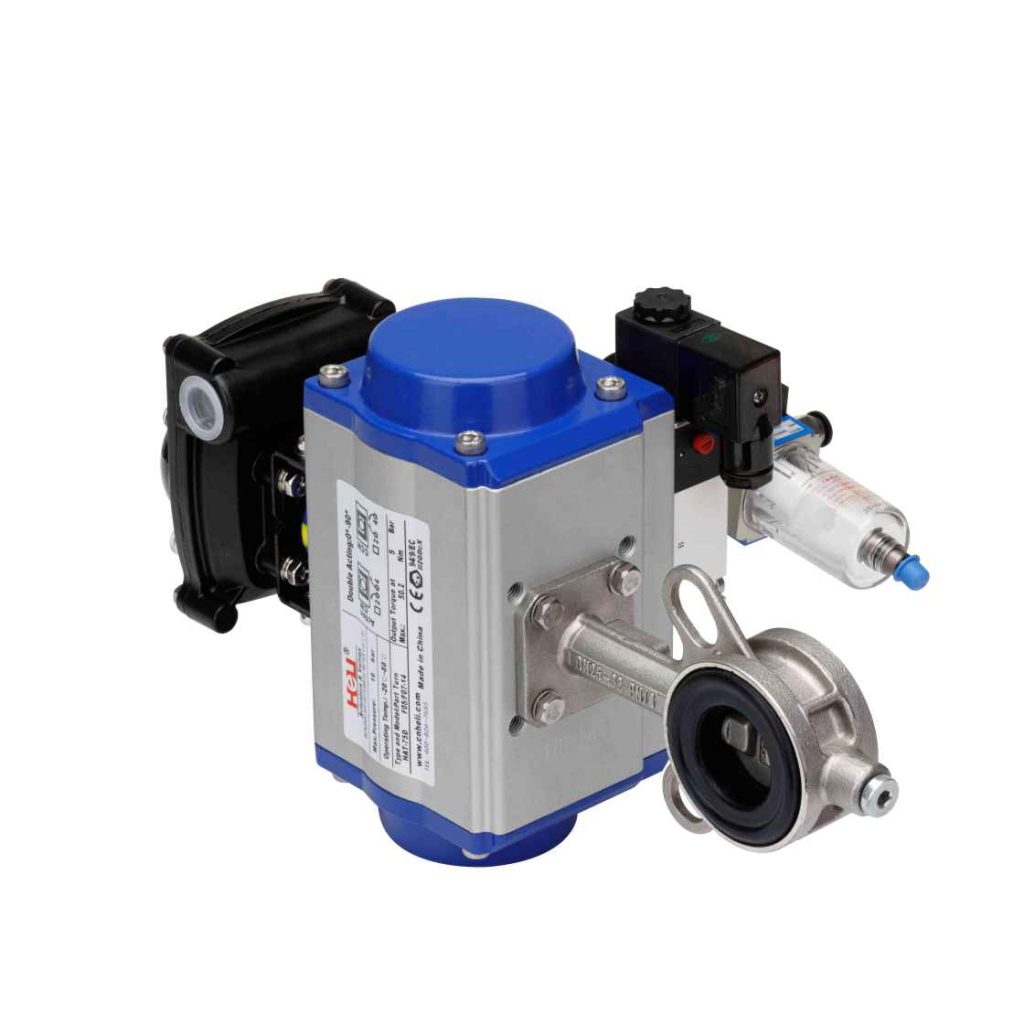

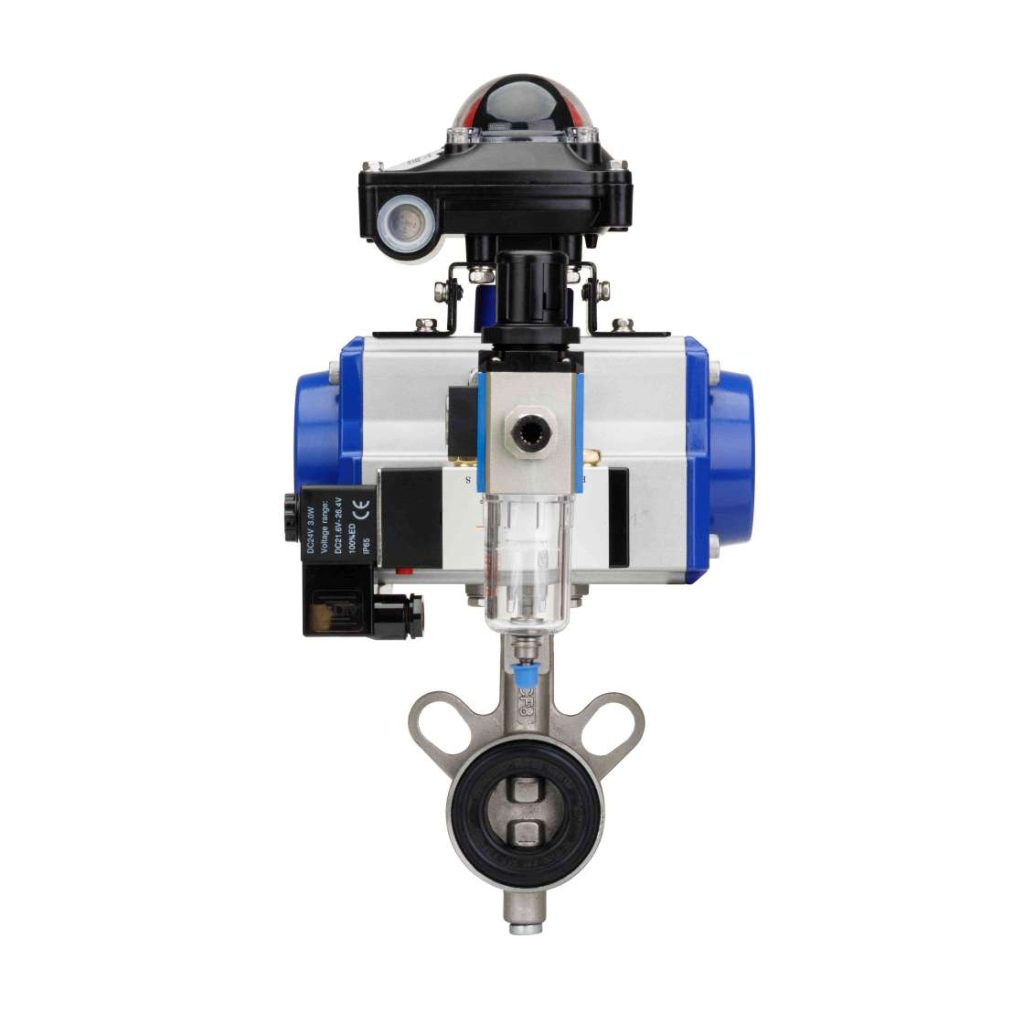

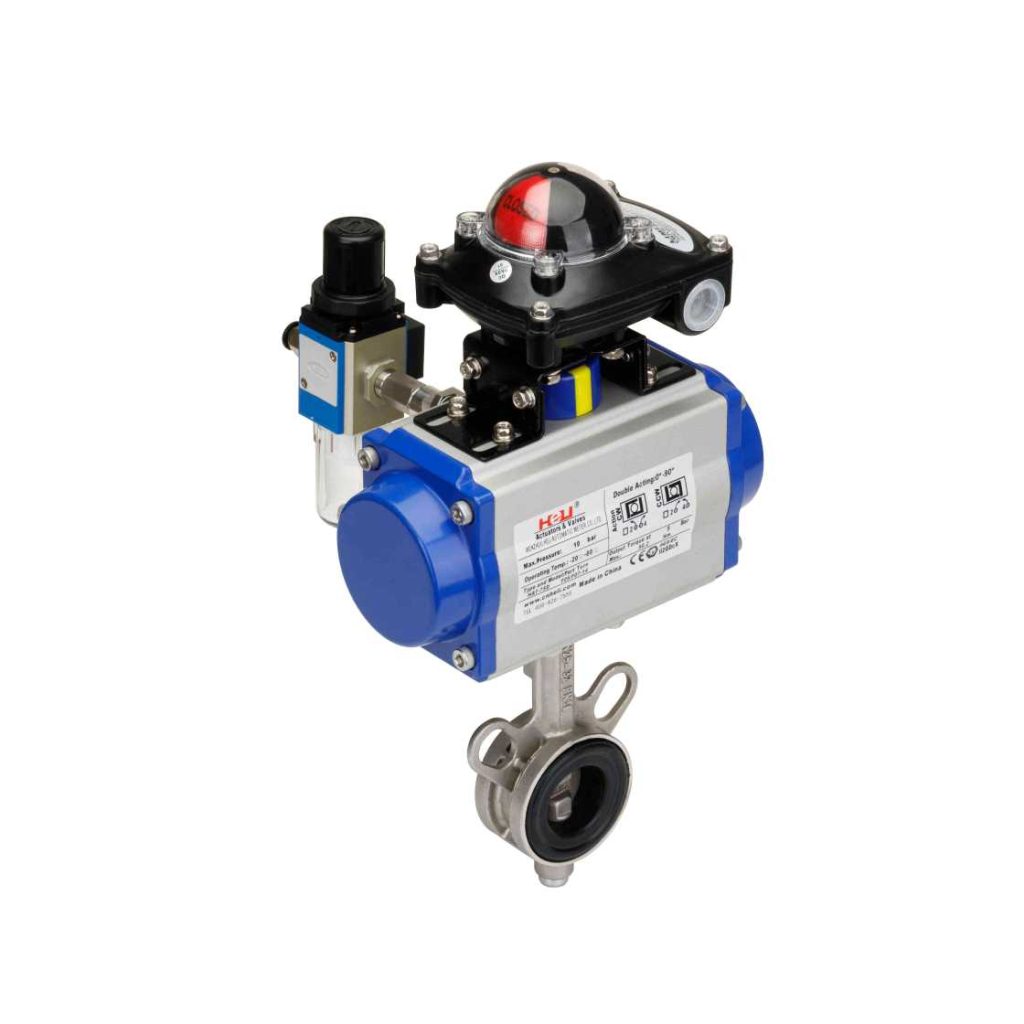

A pneumatic butterfly valve consists of a circular disc or “butterfly” that rotates around a shaft. When the valve is closed, the disc is positioned perpendicular to the flow of the fluid, effectively blocking it. When the valve opens, the disc rotates parallel to the flow, allowing fluids to pass through with minimal resistance. The term “pneumatic” indicates that the valve is operated using compressed air, which is commonly used in automated systems for efficient control. Components of Pneumatic Butterfly Valves Pneumatic butterfly valves comprise several key components: Body: The body of the valve is typically made of materials such as cast iron, stainless steel, or plastic, depending on the application and the type of fluid being handled.
