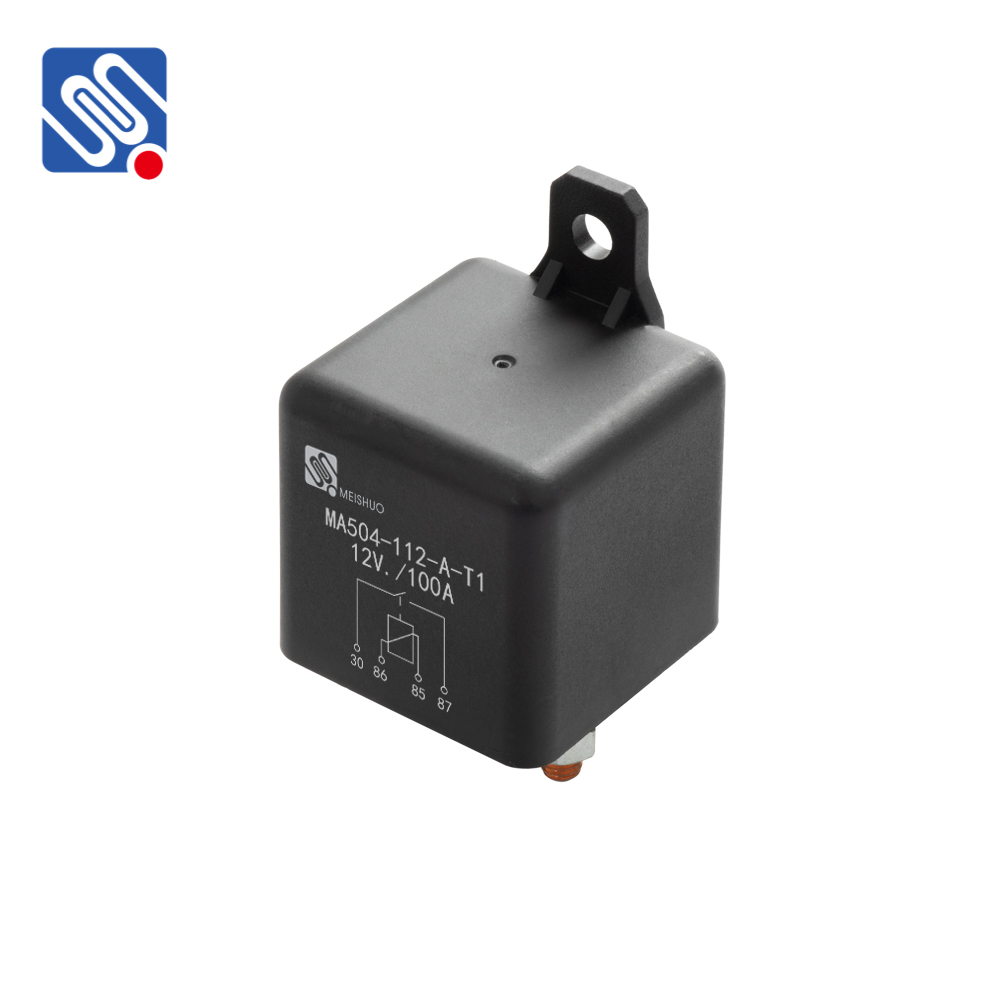

In electrical and electronic systems, relays play a crucial role in controlling high-voltage or high-current devices with low-voltage control signals. A relay is essentially an electrically operated switch that allows a small current to control a larger one. As such, understanding the concept of relay load is essential for selecting the right relay for a specific application. The term “relay load” refers to the electrical load that a relay is designed to handle while operating, which can significantly affect its performance and longevity.
What is Relay Load? Relay load refers to the type of electrical load—whether resistive, inductive, or capacitive—that the relay is expected to switch on or off. This load can vary depending on the application. The relay’s load capacity is typically expressed in terms of maximum voltage and current ratings that the relay contacts can safely carry without sustaining damage or failure. For example, a relay might be rated to handle a 10A resistive load at 250V, but this rating will change when dealing with inductive or capacitive loads, which require special considerations. Types of Loads and Their Impact on Relay Operation
