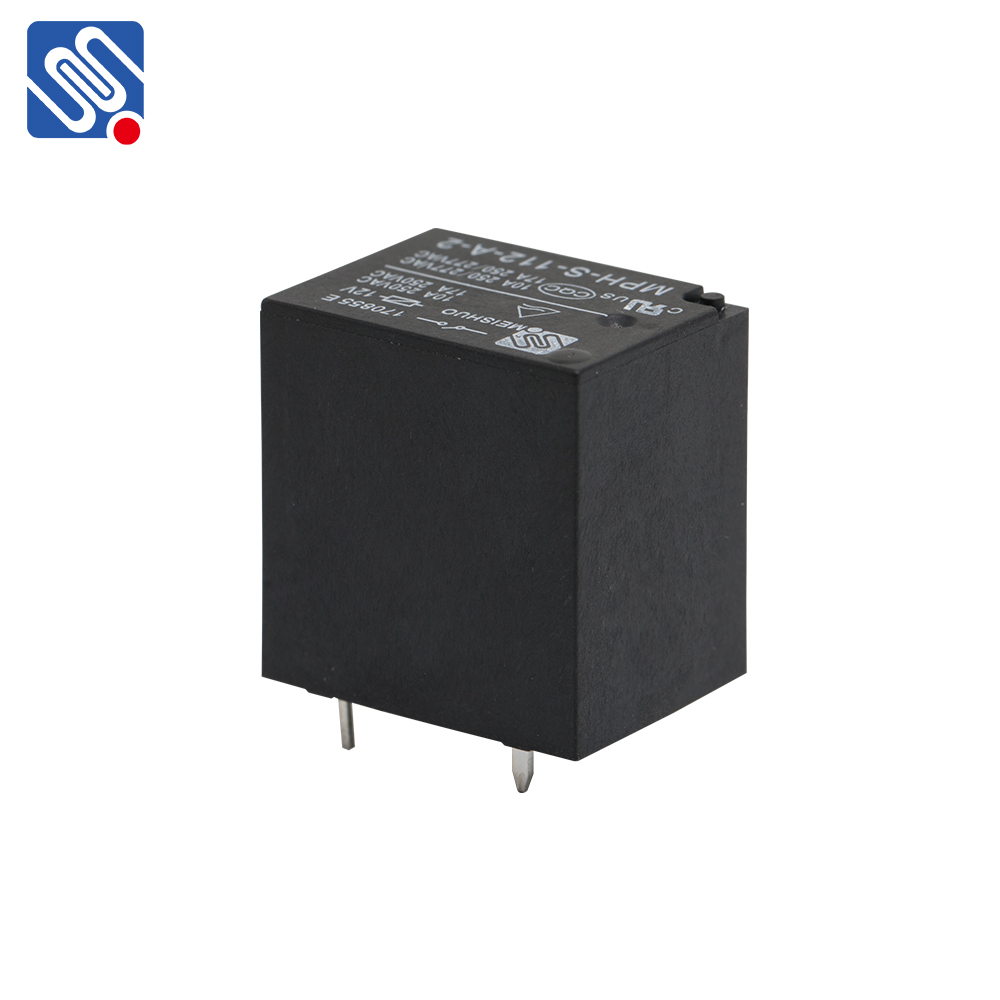

Relays are essential components in various electrical and electronic systems, used to control circuits by opening and closing contacts. These electromechanical devices are widely employed in applications ranging from industrial control systems to household appliances. To select the right relay for a given application, it is crucial to understand the relay specifications. Relay specifications outline the key parameters that determine a relay’s performance, durability, and suitability for a specific task. In this article, we will explore the key relay specifications and how they influence the selection process.
1. Nominal Voltage and Current Ratings One of the most important specifications to consider is the nominal voltage and current rating. The nominal voltage refers to the voltage that the relay is designed to operate at, while the current rating indicates the maximum current the relay can handle through its contacts. When choosing a relay, it is vital to match these ratings with the voltage and current requirements of the circuit to avoid damage or unreliable operation. For example, if a relay is designed for 12V operation, using it in a 24V circuit could cause overheating or failure. The contact voltage rating specifies the maximum voltage that can be safely switched by the relay’s contacts, while the contact current rating indicates the maximum current that the contacts can handle during operation. These values should always be considered when selecting a relay for high-power applications.
