Relays are vital components in electrical circuits, enabling control over higher voltage or current loads by using a low-power signal. They serve as electrical switches, either opening or closing contacts depending on the control signal. One of the key specifications to consider when choosing a relay is the Relay Voltage Rating, a critical factor that ensures safe and efficient operation of the relay in various applications. In this article, we will delve into what Relay Voltage Rating is, its significance, and how to properly understand and apply this specification in real-world scenarios.

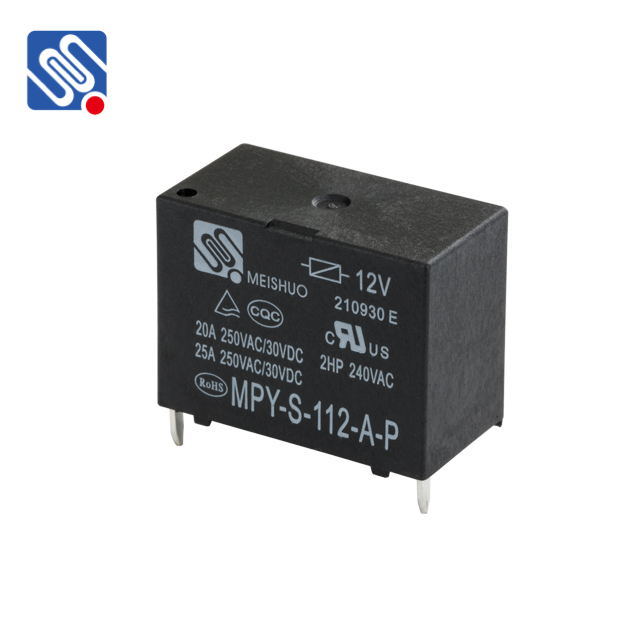

What is Relay Voltage Rating? A Relay Voltage Rating refers to the maximum voltage that a relay’s contacts can handle while still functioning properly without causing damage. There are two important types of voltage ratings to consider： the coil voltage rating and the contact voltage rating. Coil Voltage Rating： This is the voltage applied across the relay’s coil to actuate the switch. When this voltage is supplied, it generates a magnetic field that pulls the armature and closes or opens the contacts. The coil voltage is usually specified in either DC (Direct Current) or AC (Alternating Current), depending on the type of relay.
