Relays are essential components in various electrical and electronic systems, functioning as a switch that is controlled by an electrical signal. One such widely used relay is the 24V 10A Relay, which operates at 24 volts and is capable of handling up to 10 amps of current. This article will explore the structure, operation, and applications of the 24V 10A relay, highlighting its importance in both industrial and consumer applications.

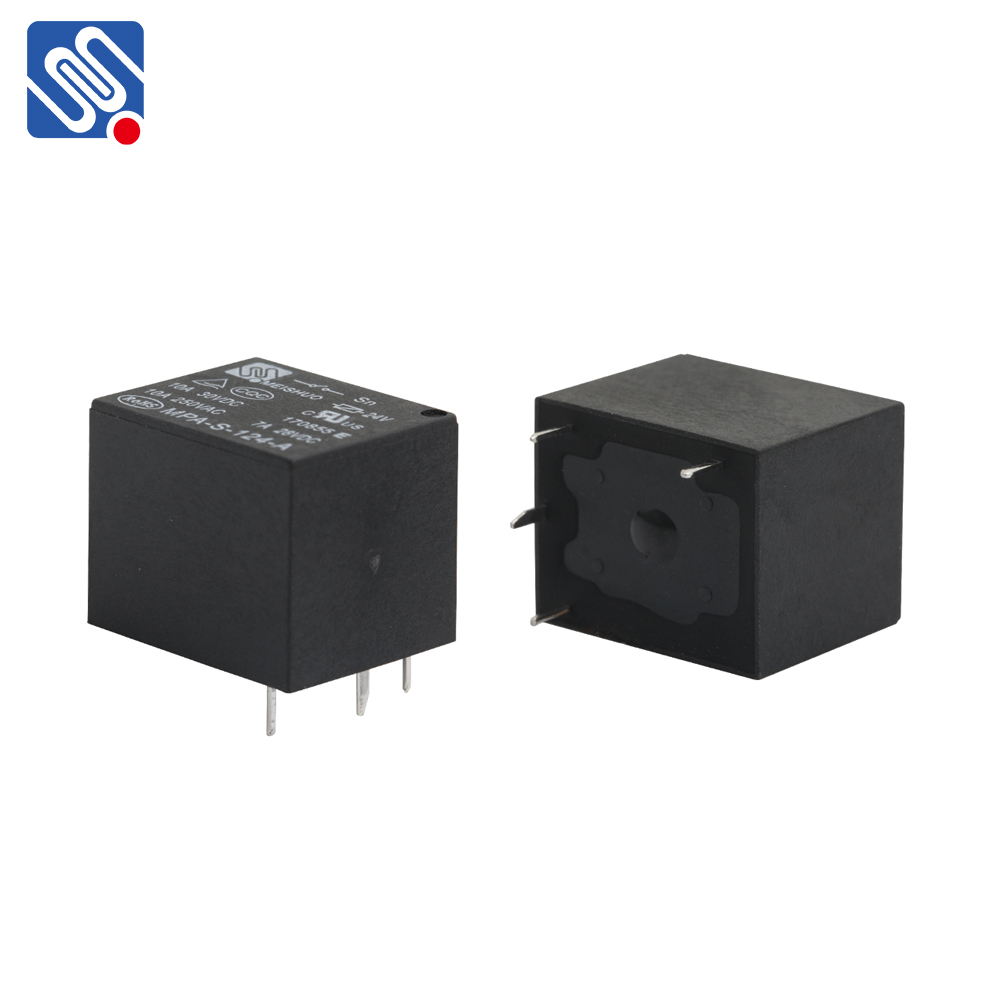

What is a 24V 10A Relay? A relay is an electromagnetic switch that allows a low-power electrical signal to control a higher power circuit. The 24V 10A Relay specifically operates on a 24-volt direct current (DC) power supply and can manage up to 10 amps of current on its output contacts. It is designed to isolate the control circuit from the load circuit, thus ensuring the safety and durability of the system by preventing the high-voltage load circuit from affecting the control components. These relays typically consist of a coil, which when energized creates a magnetic field that moves an armature to open or close the relay’s contacts. The contacts are either normally open (NO) or normally closed (NC), which means the circuit is either open or closed when the relay is not energized, respectively. When power is supplied to the coil, the armature moves, and the contacts change their state, thereby controlling the flow of current through the load circuit.
