Electric flanged butterfly valves are integral components in various industrial applications, particularly in the control of fluid flow. These valves combine the functionality of traditional butterfly valves with the precision of electric actuation, making them a popular choice for modern piping systems. In this article, we will explore the design, operation, advantages, and applications of electric flanged butterfly valves.
Design and Construction

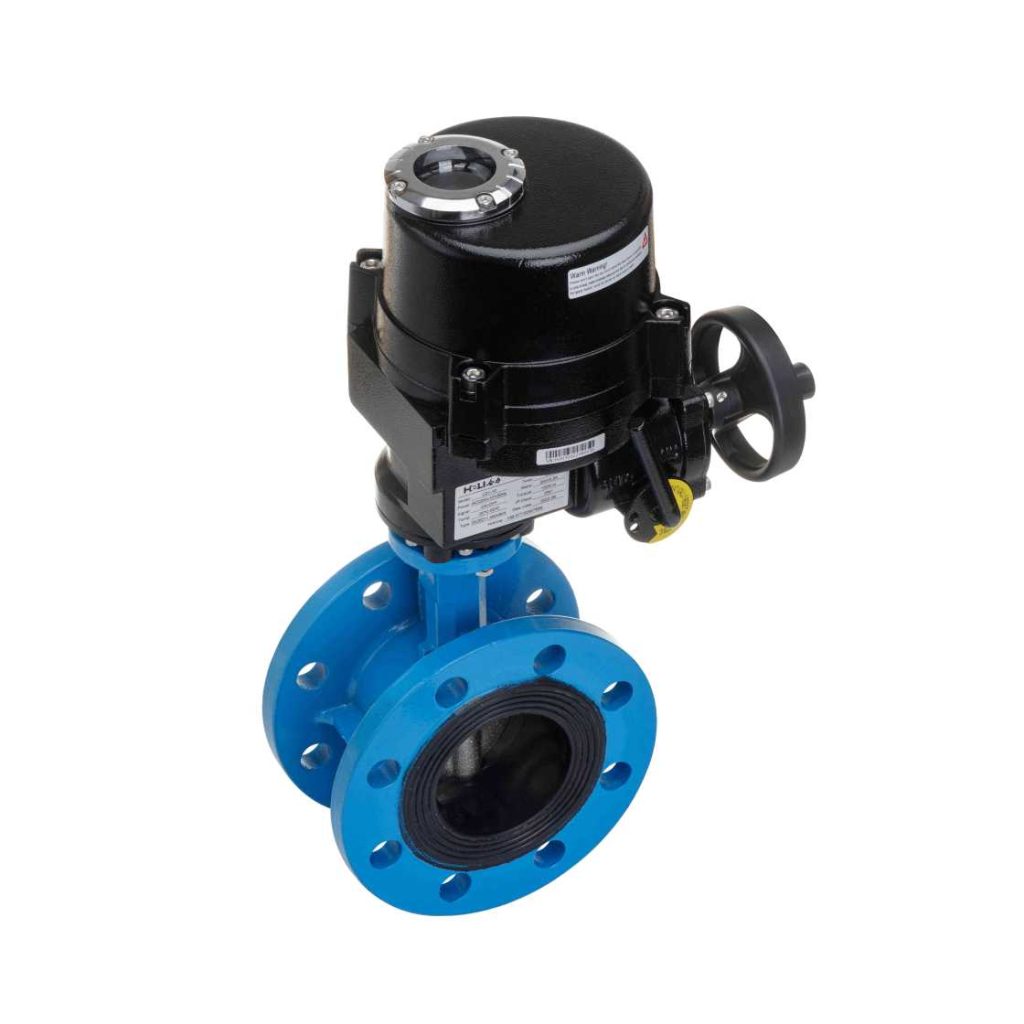

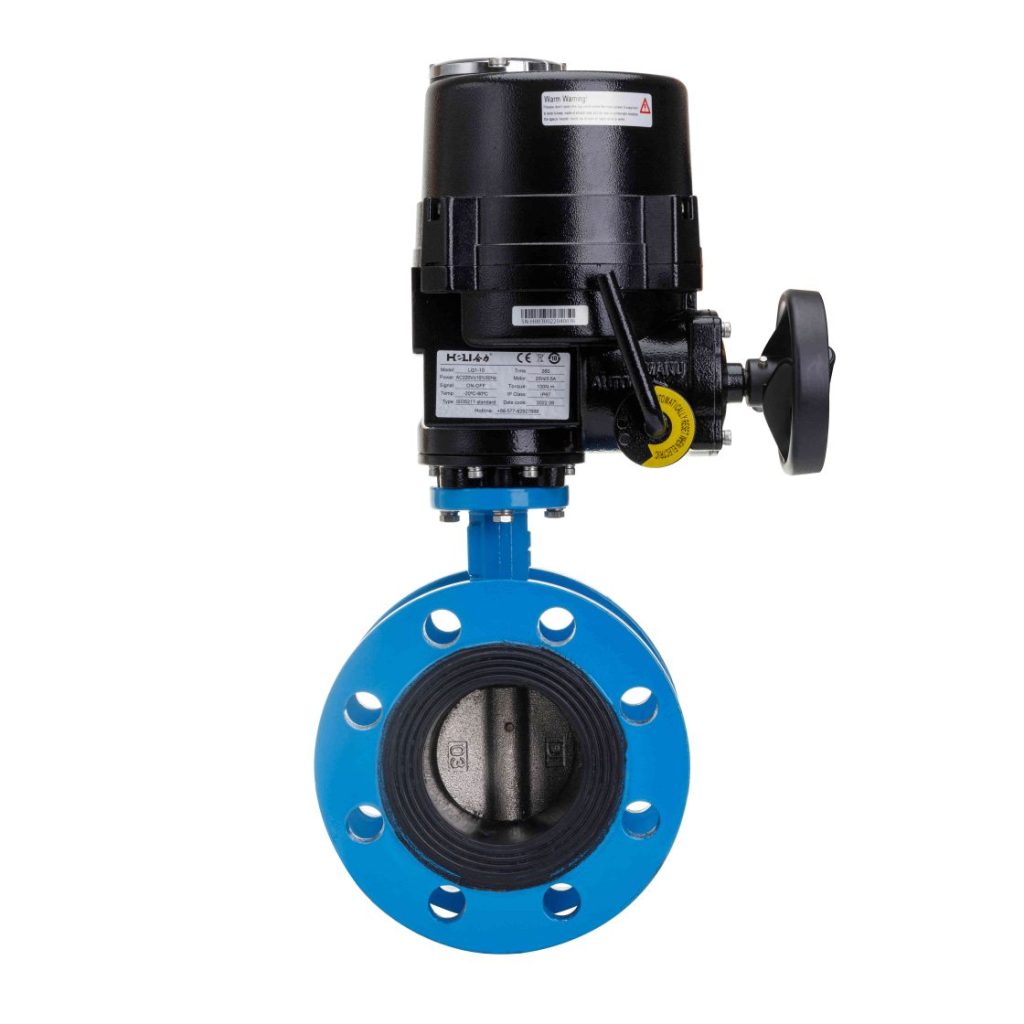

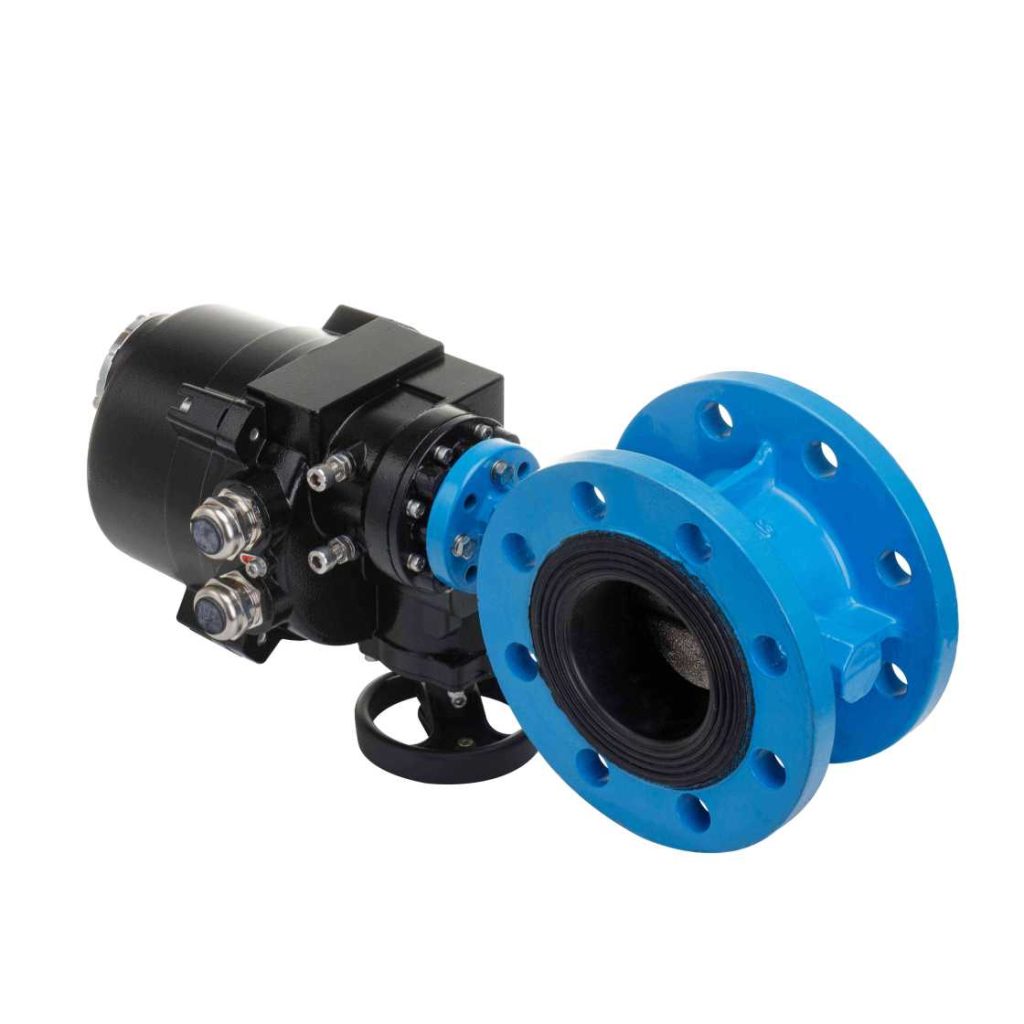

The electric flanged butterfly valve consists of a circular disc that rotates around a central axis. The valve’s body is typically made from materials such as stainless steel, cast iron, or plastic, depending on the application and the medium being controlled. The flanged design allows for easy installation in pipelines, as the flanges can be bolted directly to the pipeline, ensuring a secure and leak-free connection. The electric actuator is mounted on top of the valve, providing a mechanism to open and close the valve remotely. This actuator is powered by electricity and can be controlled via a variety of methods, including manual switches, programmable logic controllers (PLCs), or even remote control systems. The integration of electric actuation allows for precise control over the valve’s position, enabling operators to adjust flow rates accurately.
