understanding the electric flanged hard seal butterfly valve: a comprehensive overview

TheElectric Flanged Hard Seal Butterfly Valveis a pivotal component in various industrial applications, known for its efficiency, reliability, and versatility. This article delves into its design, functionality, advantages, and applications, providing a comprehensive understanding of this critical valve type.

Design and Construction

The Electric Flanged Hard Seal Butterfly Valve features a unique design that integrates an electric actuator with a butterfly valve mechanism. The valve body is typically made from robust materials like cast iron, stainless steel, or carbon steel, ensuring durability and resistance to corrosion. The hard seal is often achieved through the use of metal or resilient materials that provide a tight closure, preventing leakage and ensuring efficient operation. The flanged connection allows for easy installation and maintenance, enabling the valve to be securely mounted between two flanges in a pipeline. This design not only enhances the valve’s structural integrity but also simplifies its replacement or servicing. The butterfly disc, which is the heart of the valve, rotates on a shaft to control flow. When the valve is fully opened, the disc is parallel to the flow, minimizing pressure drop and resistance.

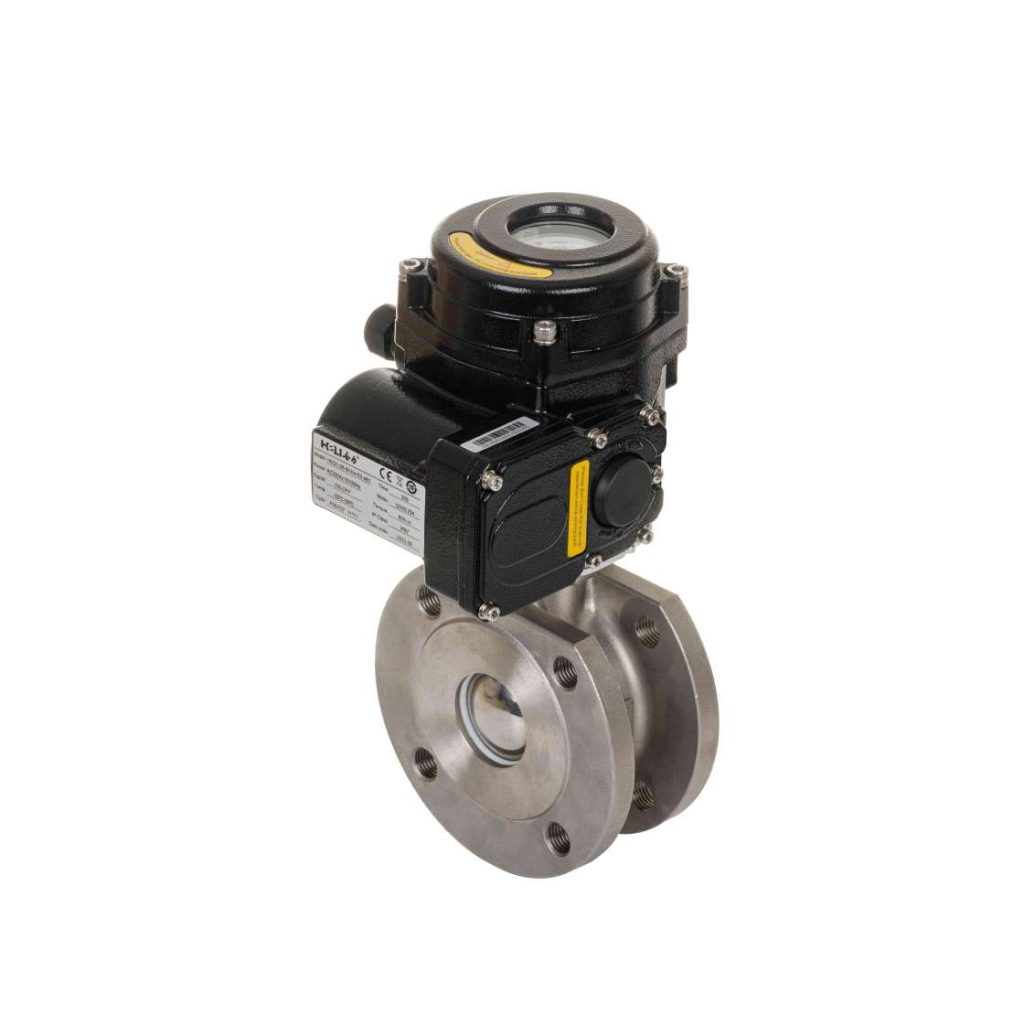

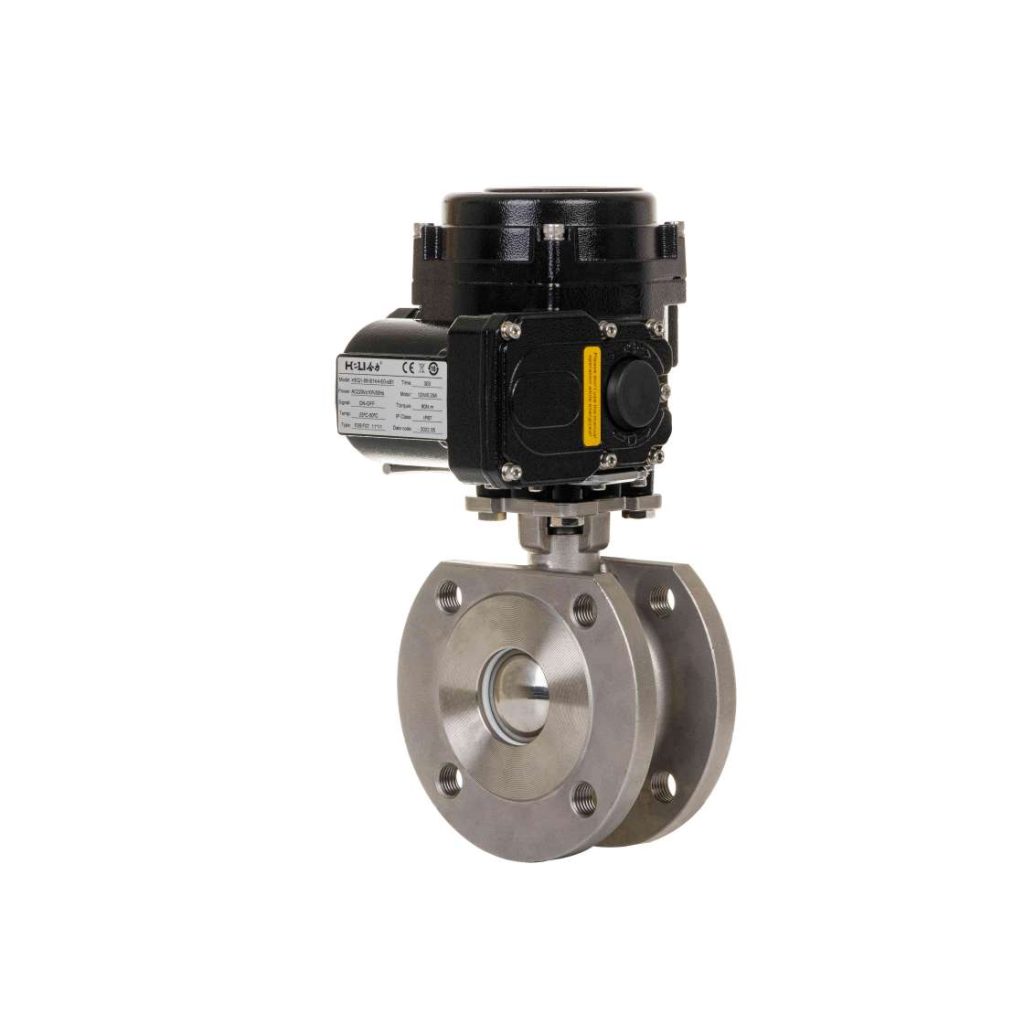

Electric flanged hard seal butterfly valve
