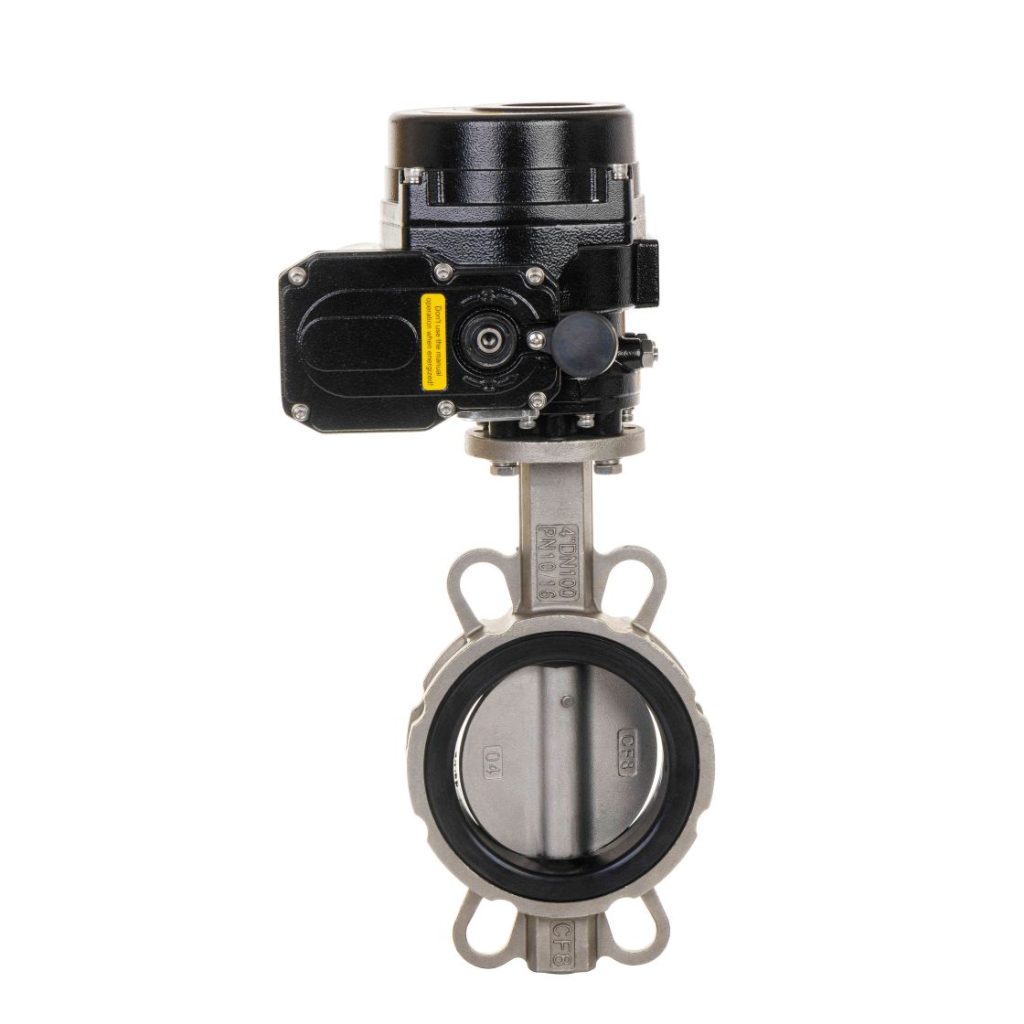

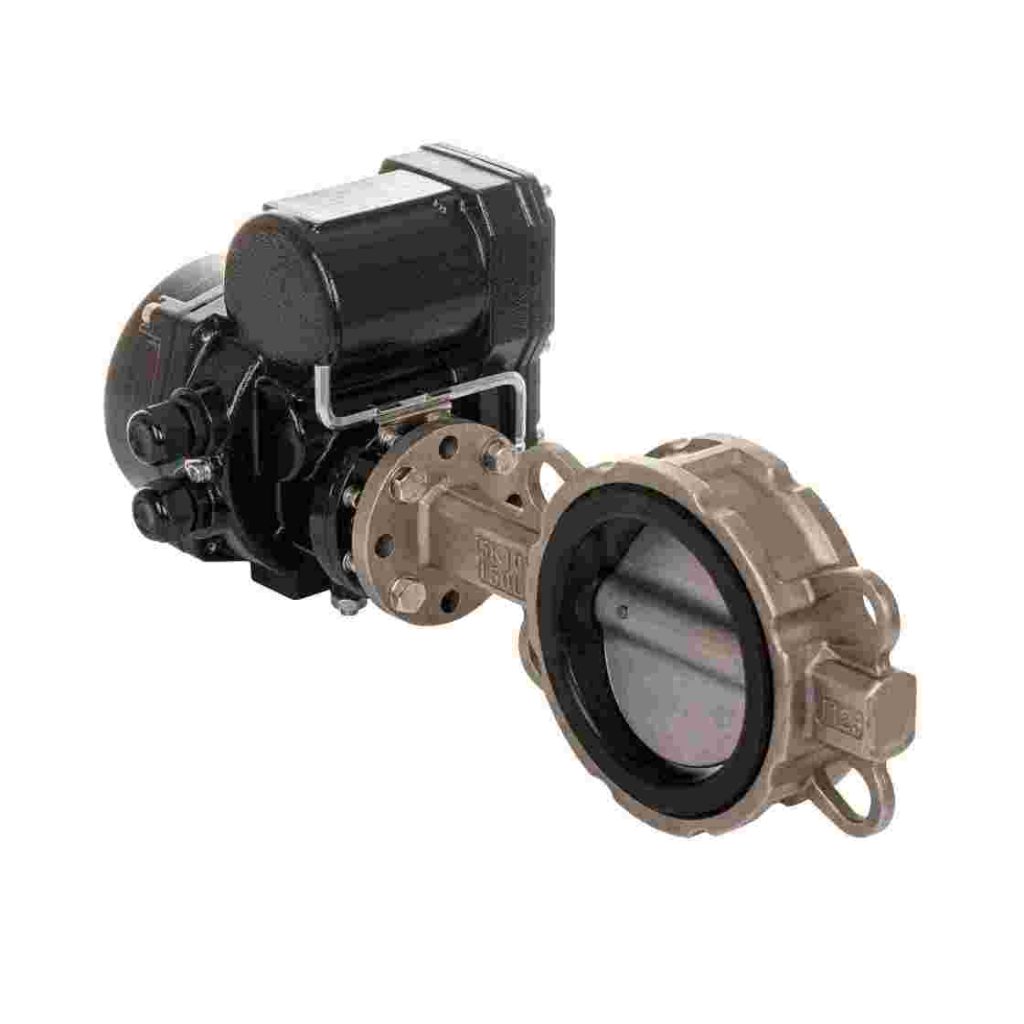

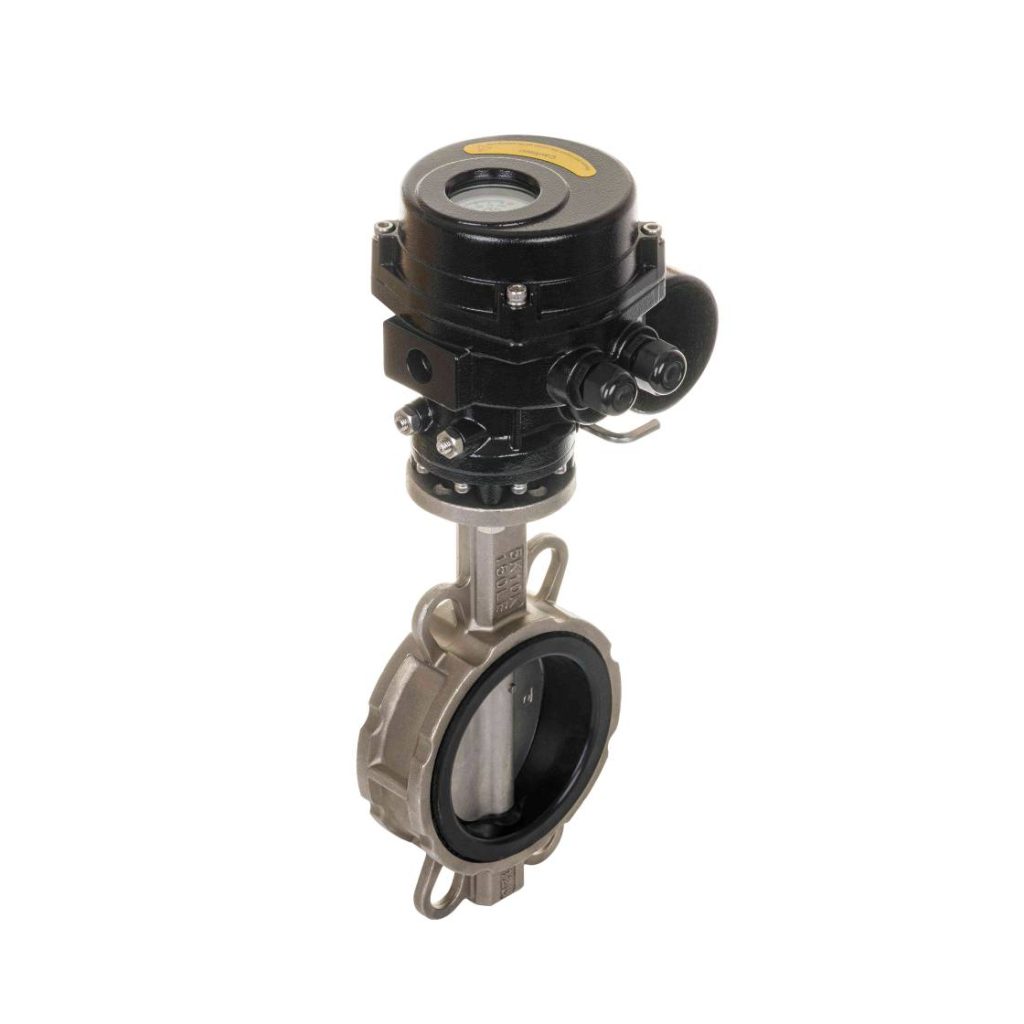

TheElectric Flanged Soft Seal Butterfly Valveis an essential component in modern industrial applications, providing a reliable solution for controlling fluid flow. Known for its efficient design, versatility, and ease of operation, this valve type has become increasingly popular in various sectors, including water treatment, chemical processing, and HVAC systems. In this article, we will explore the construction, working principle, advantages, and applications of electric flanged soft seal butterfly valves.
Construction
The electric flanged soft seal butterfly valve comprises several key components: the body, disc, stem, seat, and actuator. The valve body is typically made from materials like cast iron, stainless steel, or carbon steel, ensuring durability and corrosion resistance. The disc is the crucial element that rotates to open or close the flow path. It is designed in a circular shape to minimize fluid resistance and is often made from similar materials as the valve body. One of the standout features of this valve is the soft sealing mechanism. The soft seal seat is usually made of elastomeric materials such as EPDM (Ethylene Propylene Diene Monomer) or NBR (Nitrile Butadiene Rubber). This type of seal provides a tight closure, preventing leakage and ensuring a reliable seal even under varying pressure conditions.
