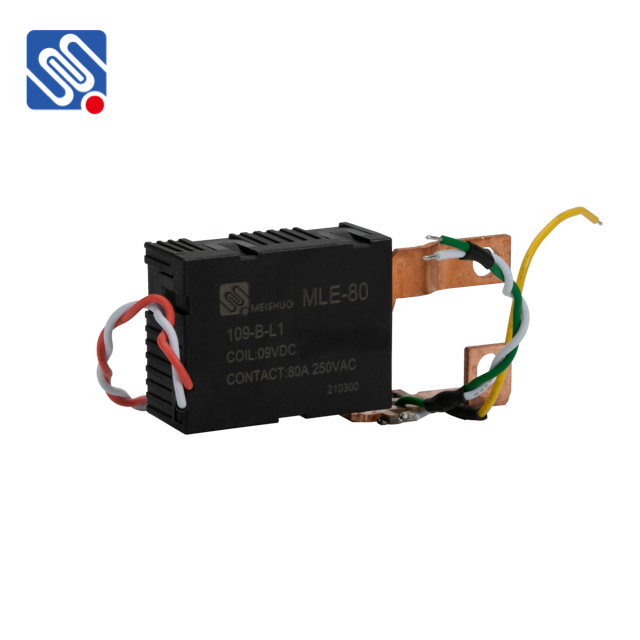

Latching relays, also known as bistable relays, are specialized electronic components that are commonly used in various control systems. Unlike traditional relays that require a continuous power supply to maintain their switched state, latching relays retain their position once activated, even when the power is turned off. This unique characteristic makes them highly efficient and useful in many applications. In this article, we will explore the working principle, features, advantages, and various applications of latching relays.
Working Principle of Latching Relay At the heart of a latching relay’s functionality is its ability to maintain its state without continuous power. This is achieved through a mechanical or electronic mechanism that locks the relay in a particular position. When a pulse signal is applied to the relay, it switches from its current state to the opposite one. The key point is that the relay will remain in this state until it receives another pulse signal, which will change it back to its original state. A typical latching relay has two stable positions, typically referred to as the “ON” and “OFF” states. The relay toggles between these two positions with each pulse, and it does not require any further power to hold its state. This is in contrast to conventional relays, which require continuous power to stay in either state.
