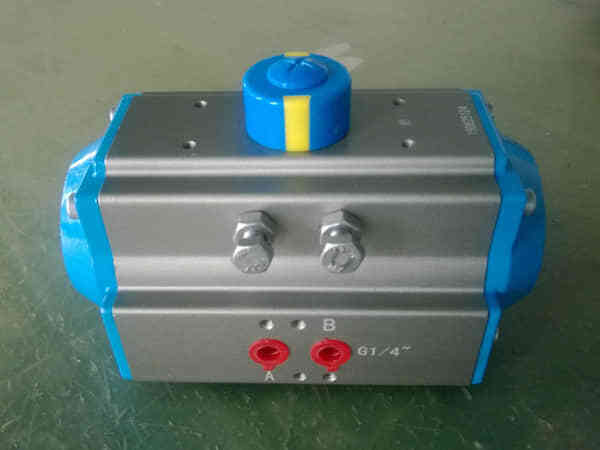

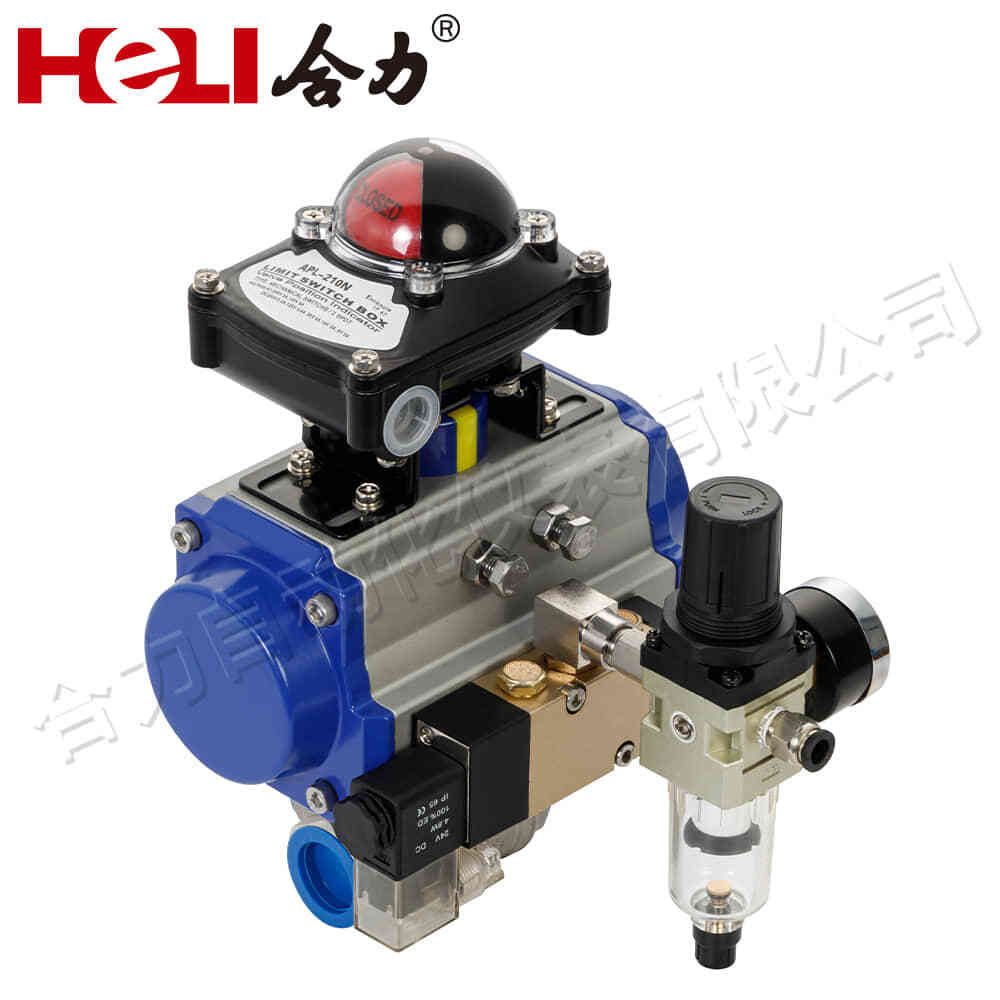

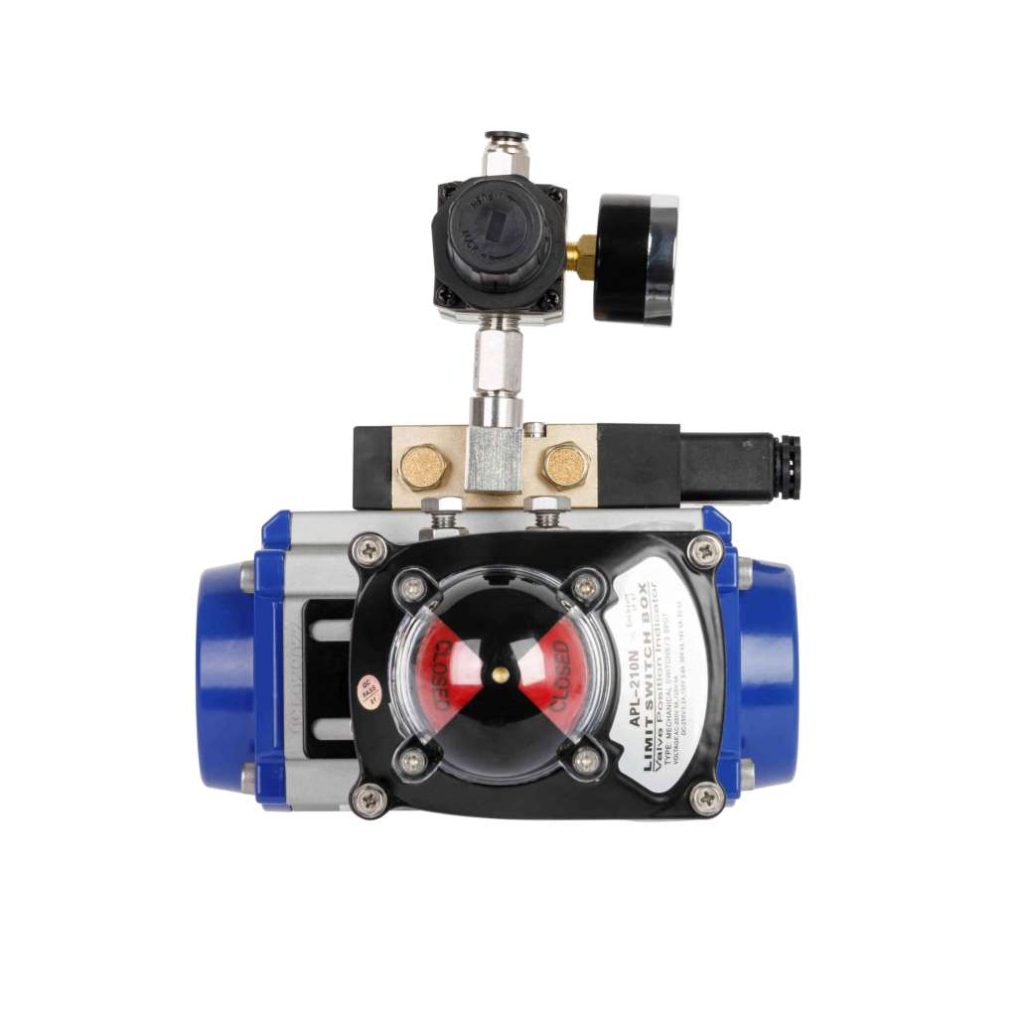

A Pneumatic Actuator is an essential mechanical device that converts compressed air into mechanical motion. It plays a crucial role in many industrial processes, offering a reliable and efficient way to perform various tasks such as opening and closing valves, moving machinery, and handling materials. In this article, we will explore the functionality, applications, and advantages of pneumatic actuators, highlighting their importance in modern automation and industrial systems.
Functionality of Pneumatic Actuators
Pneumatic actuators work by utilizing compressed air to create motion. The compressed air is supplied to the actuator, which then moves a piston inside a cylinder. This movement can be linear or rotary, depending on the actuator type. The actuator typically consists of a cylinder, piston, and rod, with an inlet for compressed air and exhaust valves to control the movement. There are two main types of pneumatic actuators： single-acting and double-acting. In a single-acting actuator, compressed air is applied in one direction to move the piston, while a spring or external force is used to return the piston to its original position when the air supply is cut off. In contrast, double-acting actuators use compressed air in both directions to move the piston forward and backward, providing more control and force.
