In the realm of industrial automation and fluid control, valves play a critical role in regulating the flow of liquids and gases. Among the various types of valves, theWCB Pneumatic Butterfly Valvehas emerged as a reliable solution, widely used in various industries due to its unique design and operational efficiency. This article delves into the features, working principles, applications, and advantages of the WCB Pneumatic Butterfly Valve, highlighting its significance in modern industrial processes.

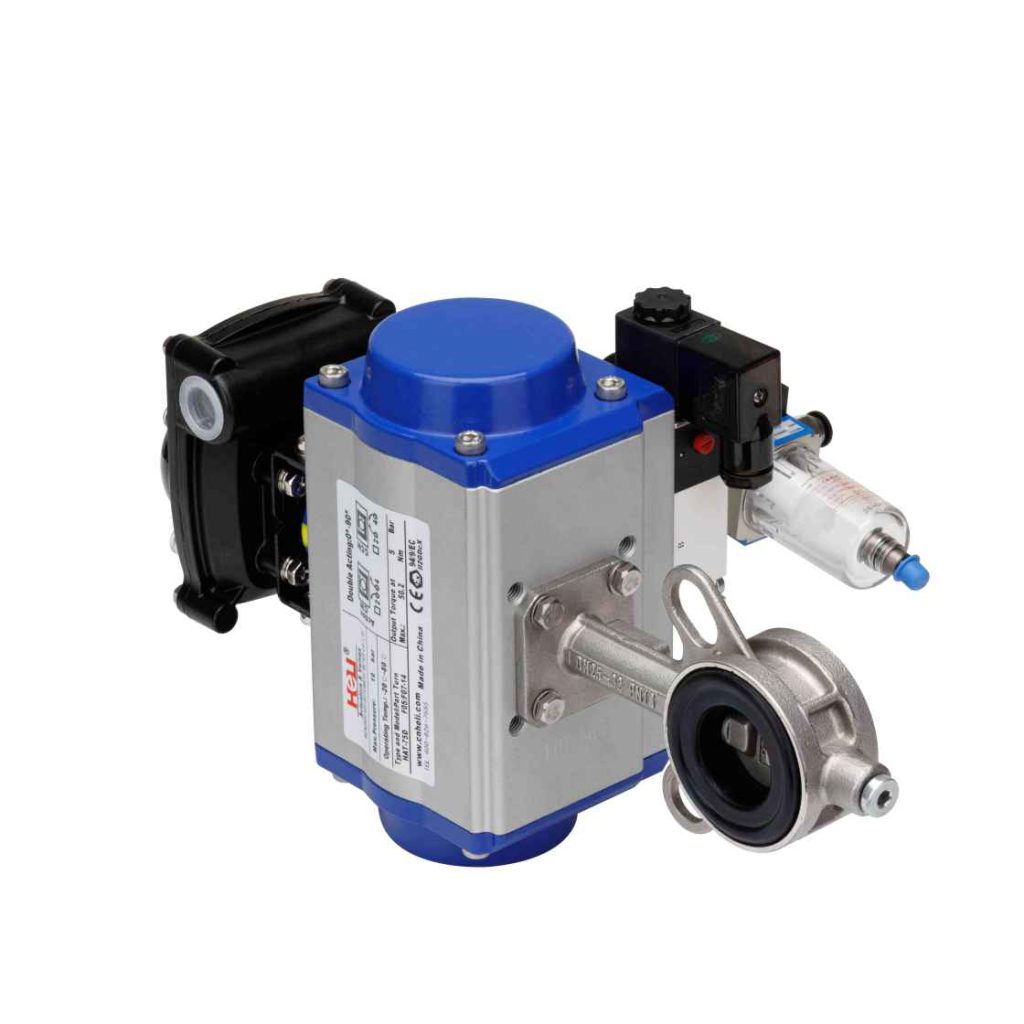

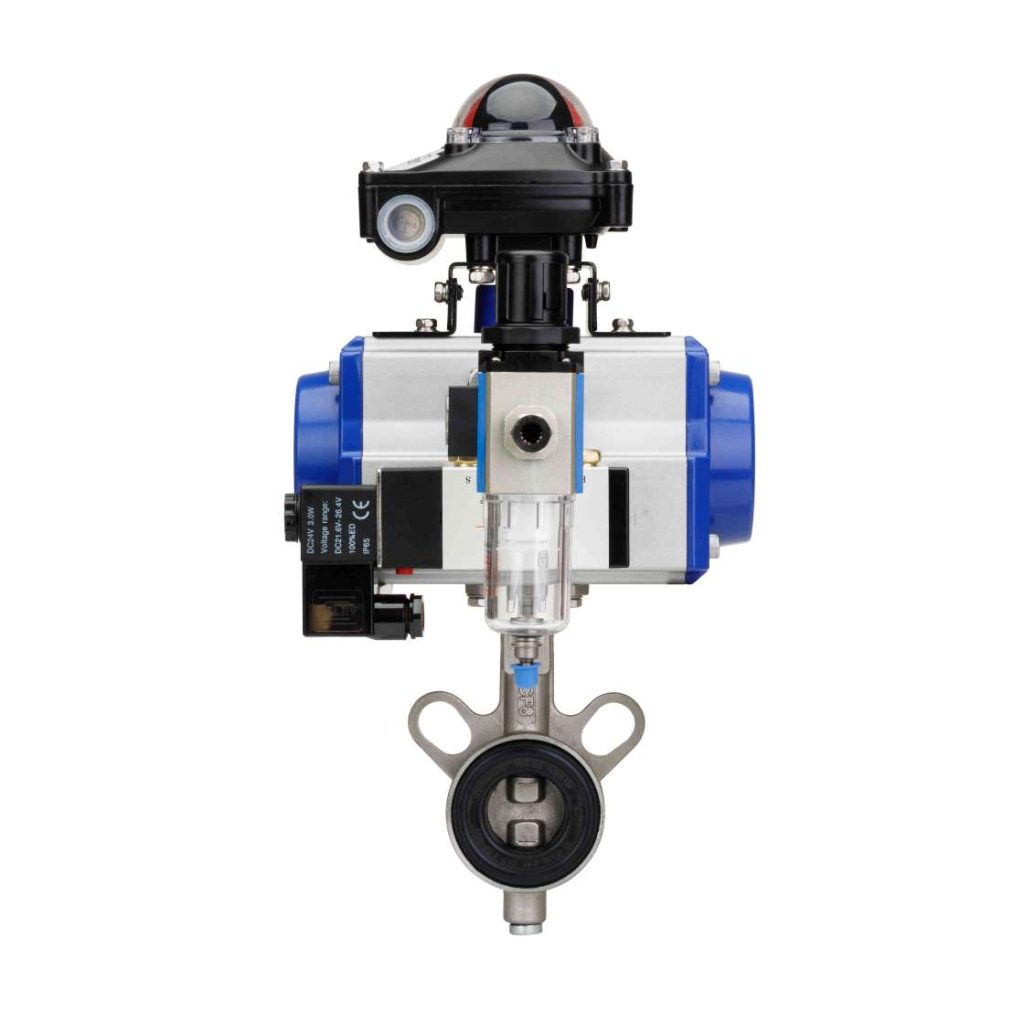

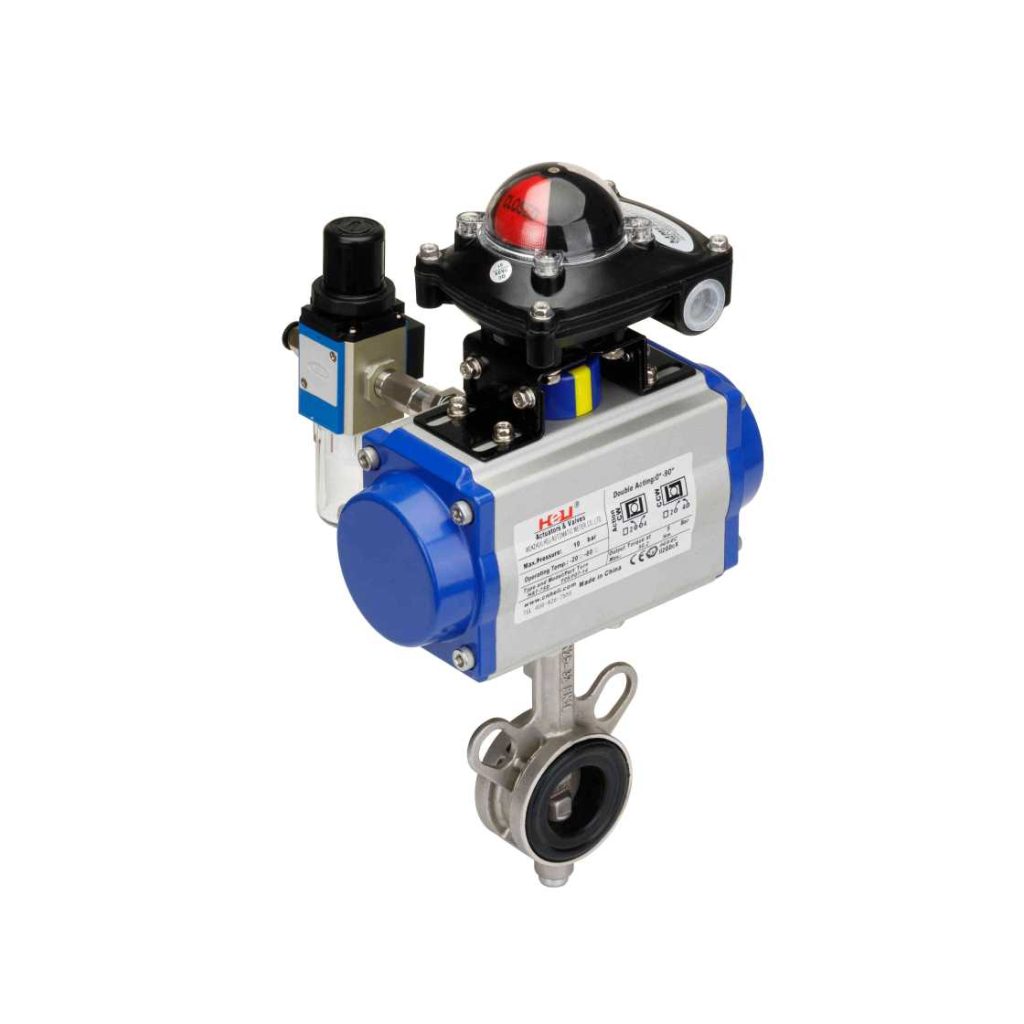

What is a WCB Pneumatic Butterfly Valve?
The WCB Pneumatic Butterfly Valve is a type of quarter-turn valve that employs a rotating disk to control the flow of media through a pipeline. “WCB” stands for “Wrought Carbon Steel,” which refers to the material used in the valve’s construction. This valve is designed to be actuated pneumatically, meaning that it uses compressed air to operate the valve’s movement. The key components of this valve include the body, disk, seat, and pneumatic actuator. How Does It Work? The operation of the WCB Pneumatic Butterfly Valve is relatively straightforward. When the pneumatic actuator is engaged, it sends compressed air to the actuator chamber, which causes the valve’s disk to rotate. In the fully open position, the disk is parallel to the flow direction, allowing for unrestricted flow. Conversely, when the actuator is de-energized, the disk rotates back to its closed position, effectively blocking the flow of media. This mechanism enables quick and efficient control over the flow rate, making it ideal for various applications.
