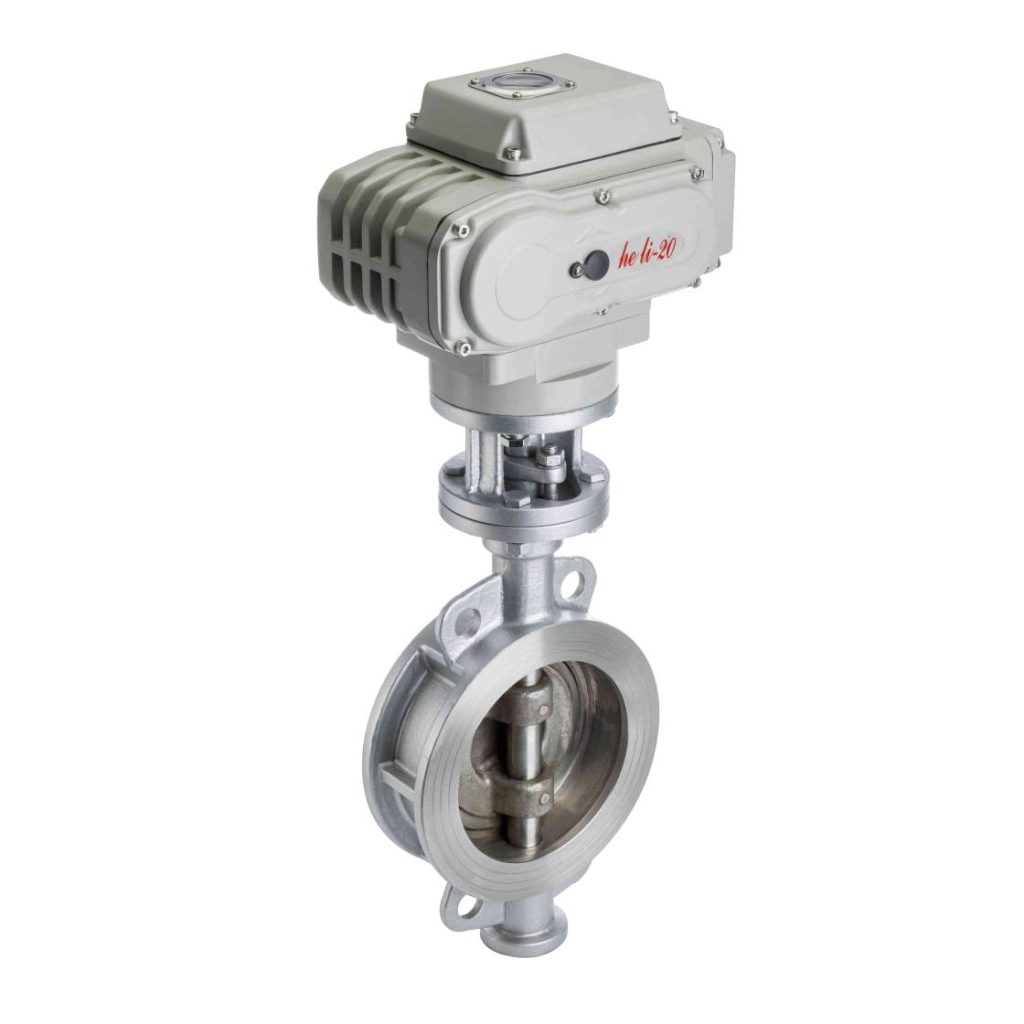

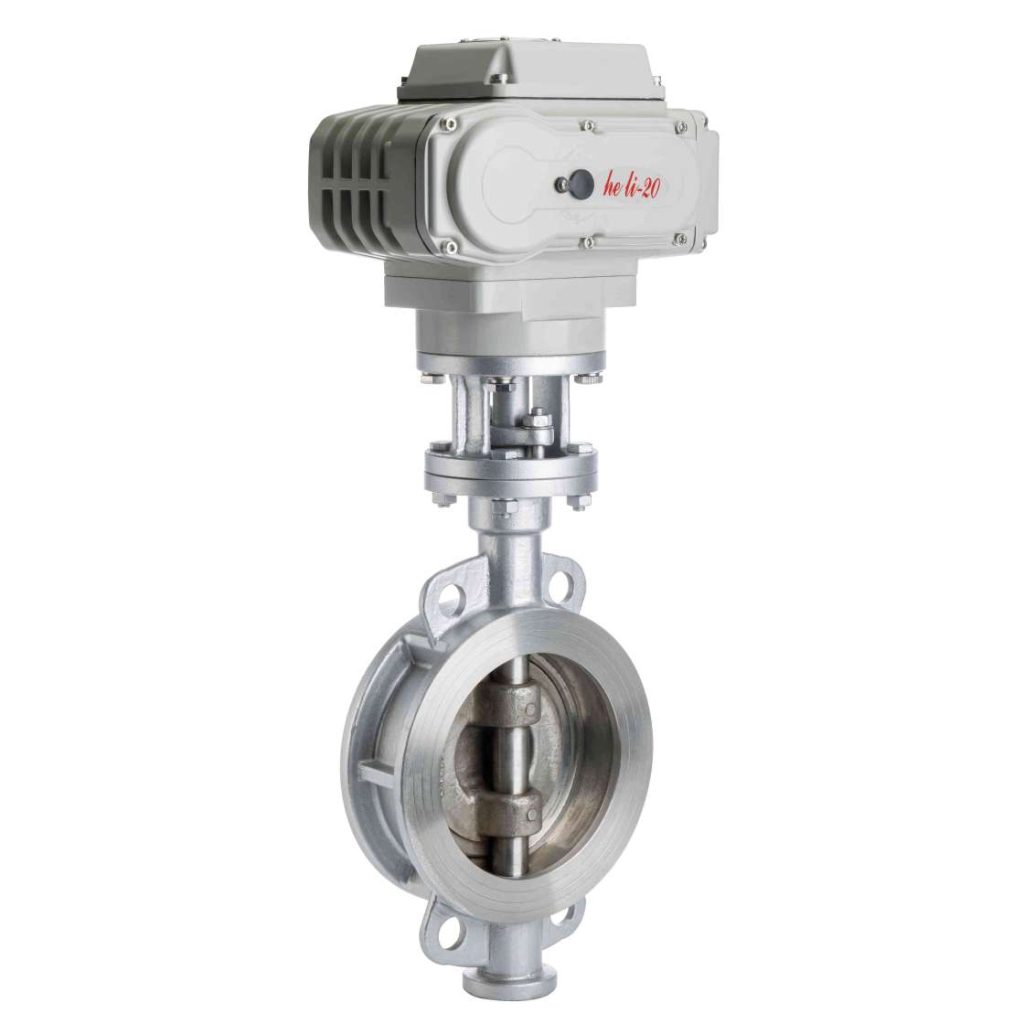

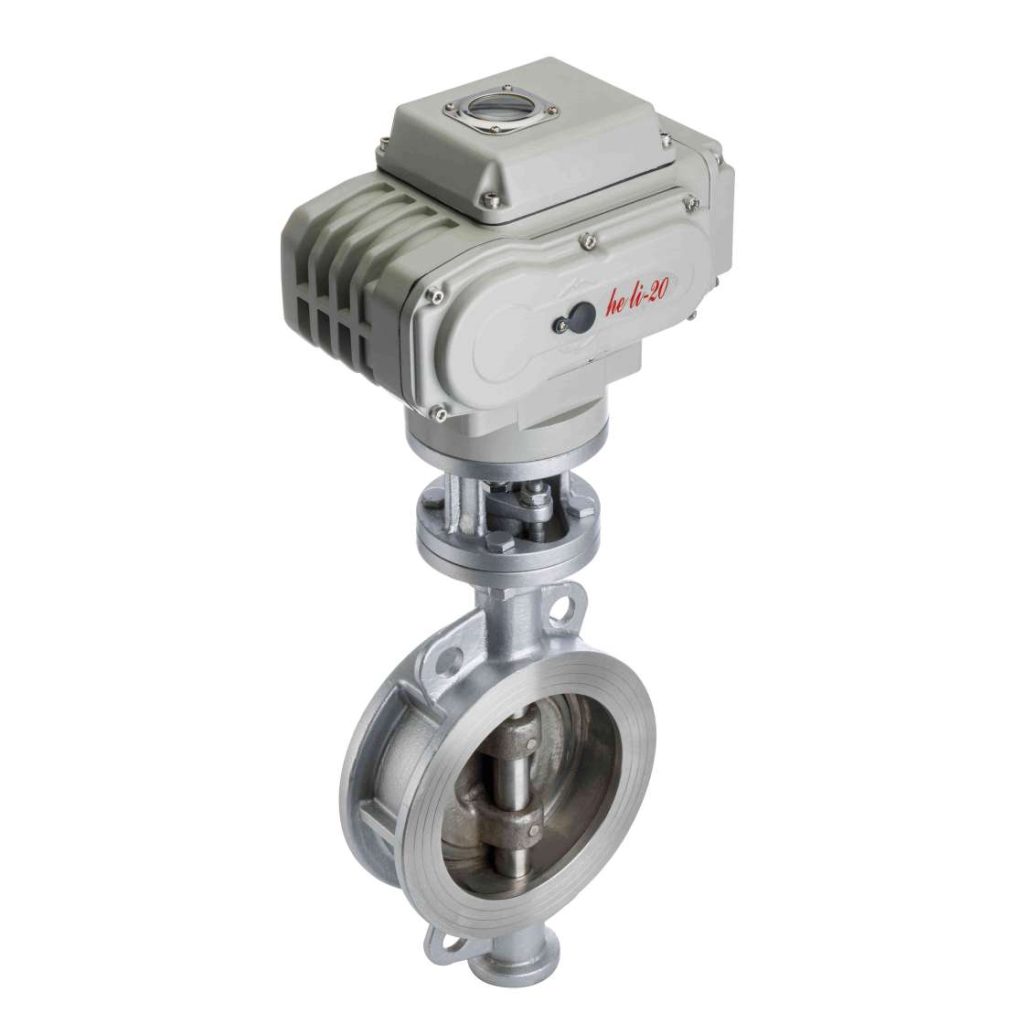

The WCB Electric Three Eccentric Butterfly Valve is an innovative and highly effective valve system designed to meet the demands of a wide range of industrial applications. With its unique design and advanced features, this valve provides unparalleled performance and durability in controlling fluid flow. The three eccentric design, coupled with the electric actuator, makes the WCB Electric Three Eccentric Butterfly Valve an ideal choice for various industries, including water treatment, chemical processing, and HVAC systems.
Understanding the Three Eccentric Design
The term “three eccentric” refers to the unique configuration of the valve’s disc, shaft, and sealing surfaces. This design includes three offset axes, which contribute to smoother operation, reduced wear, and better sealing performance. The three eccentric points are: The first eccentricity is the offset between the shaft centerline and the valve body centerline. The second eccentricity is the offset between the valve disc center and the shaft centerline. The third eccentricity is the offset between the center of the valve seat and the shaft centerline. This arrangement helps the disc to move in a way that gradually lifts off the seat, resulting in less friction and wear on the sealing surfaces. The improved sealing mechanism ensures that the valve can maintain a tight seal even after years of operation, minimizing leakage and ensuring the integrity of the system.
