The WCB pneumatic butterfly valve is an essential piece of equipment in a wide range of industrial control systems. Known for its reliable performance, efficient operation, and versatility, this valve is a key player in regulating the flow of liquids, gases, and powders in various processes. Understanding the design, applications, and benefits of the WCB pneumatic butterfly valve is crucial for anyone involved in industrial automation and fluid control systems.
Design and Construction of the WCB Pneumatic Butterfly Valve

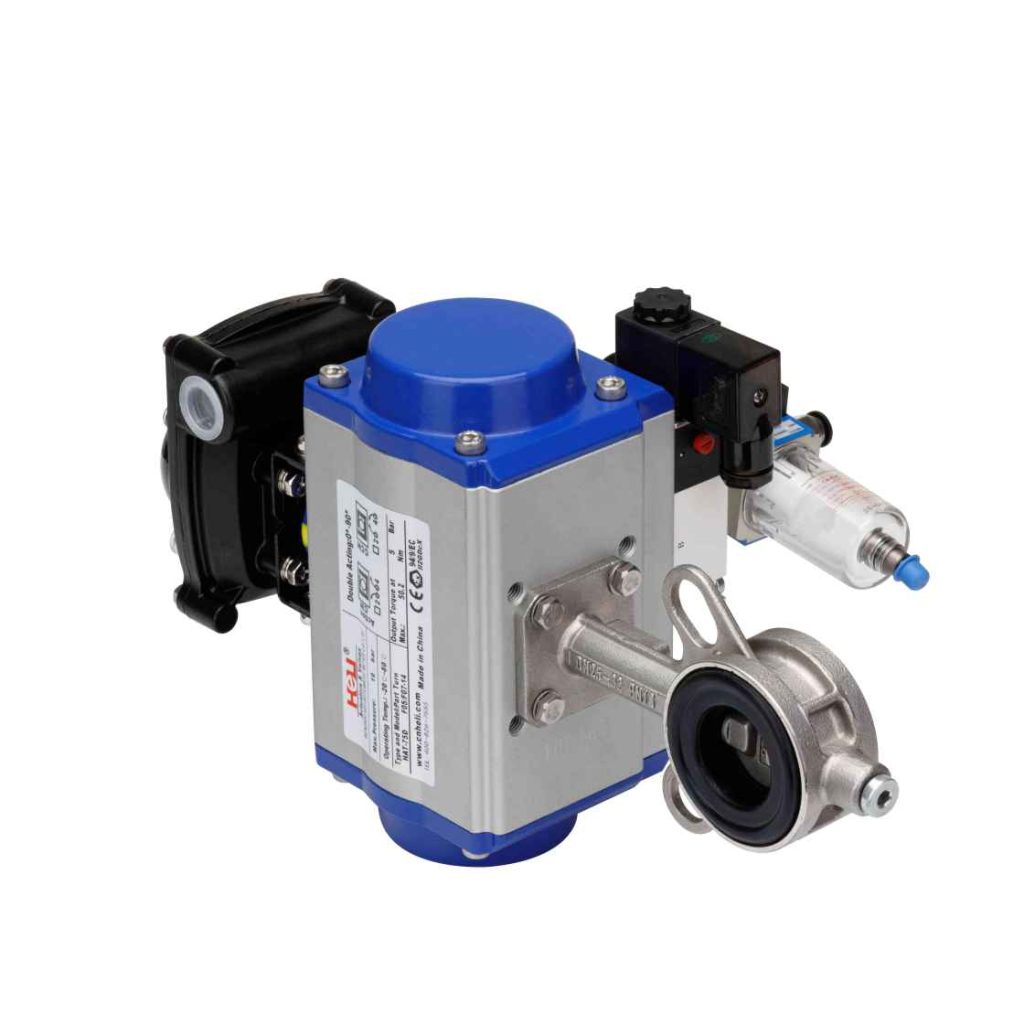

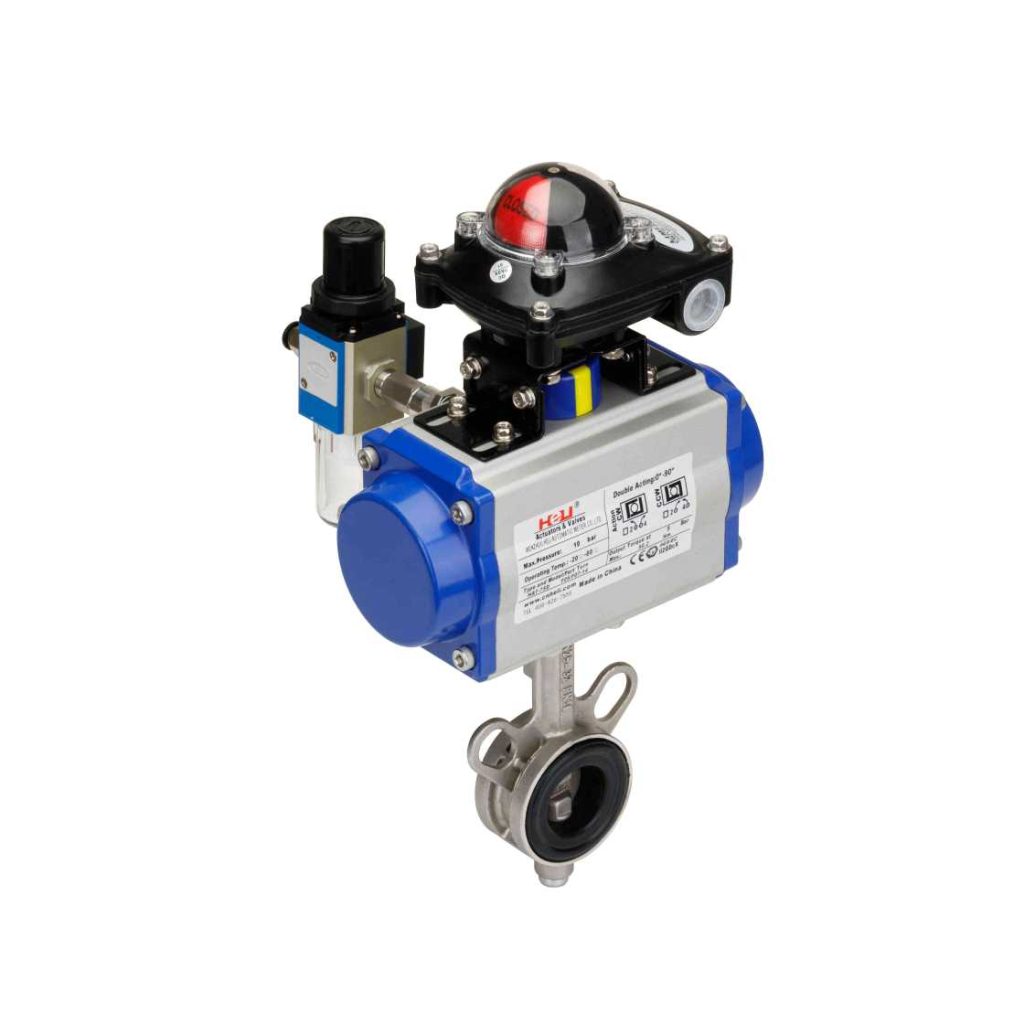

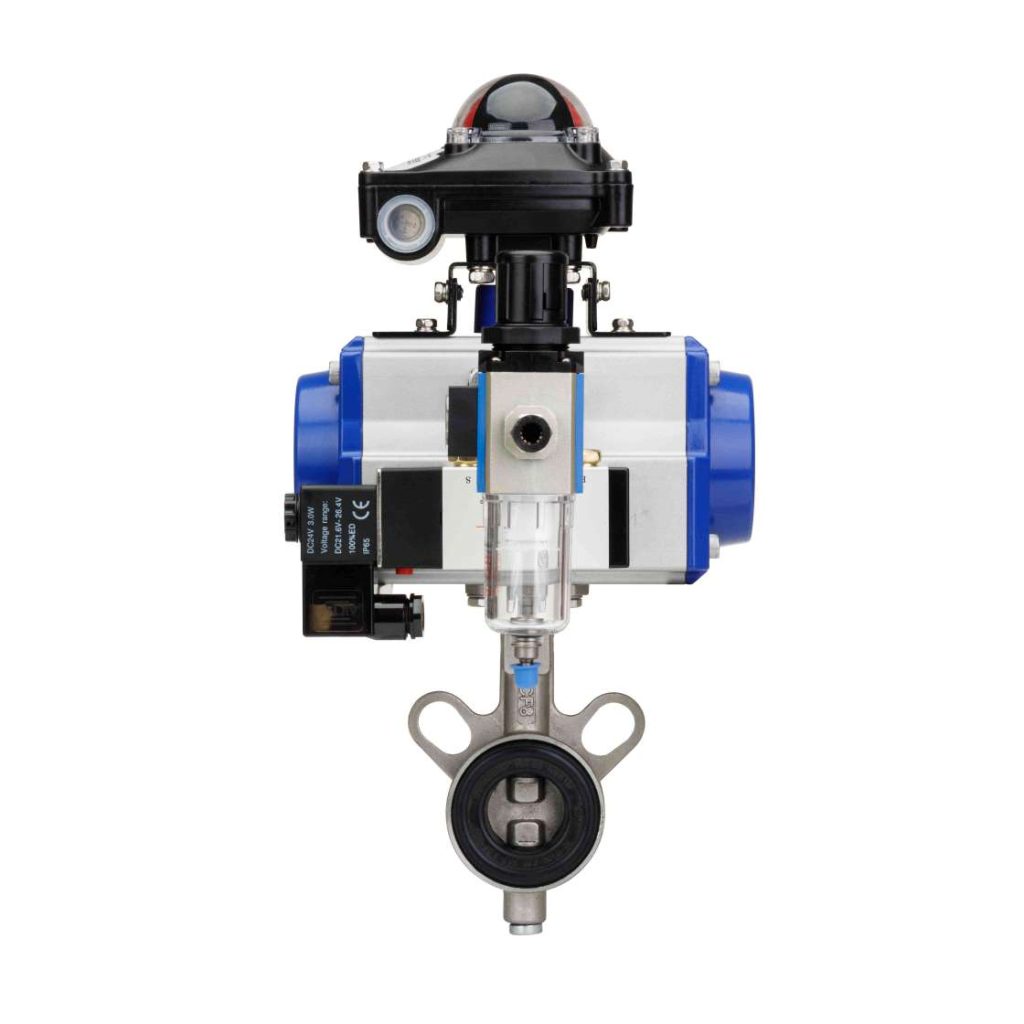

The WCB pneumatic butterfly valve is designed with a disc mounted on a shaft, which rotates to control the flow of materials through a pipe. The valve operates by using compressed air to actuate the pneumatic mechanism, allowing for precise control over the opening and closing of the valve. The key component of the WCB valve is its body, typically made from WCB (a type of cast carbon steel), which is durable and resistant to corrosion, making it suitable for harsh industrial environments. One of the defining features of the WCB pneumatic butterfly valve is its compact design. Unlike traditional valves that are bulky and take up significant space, the butterfly valve has a smaller footprint, making it ideal for installations in confined spaces. Additionally, the valve’s construction allows for quick and easy installation and maintenance, reducing downtime and operational costs for businesses.
